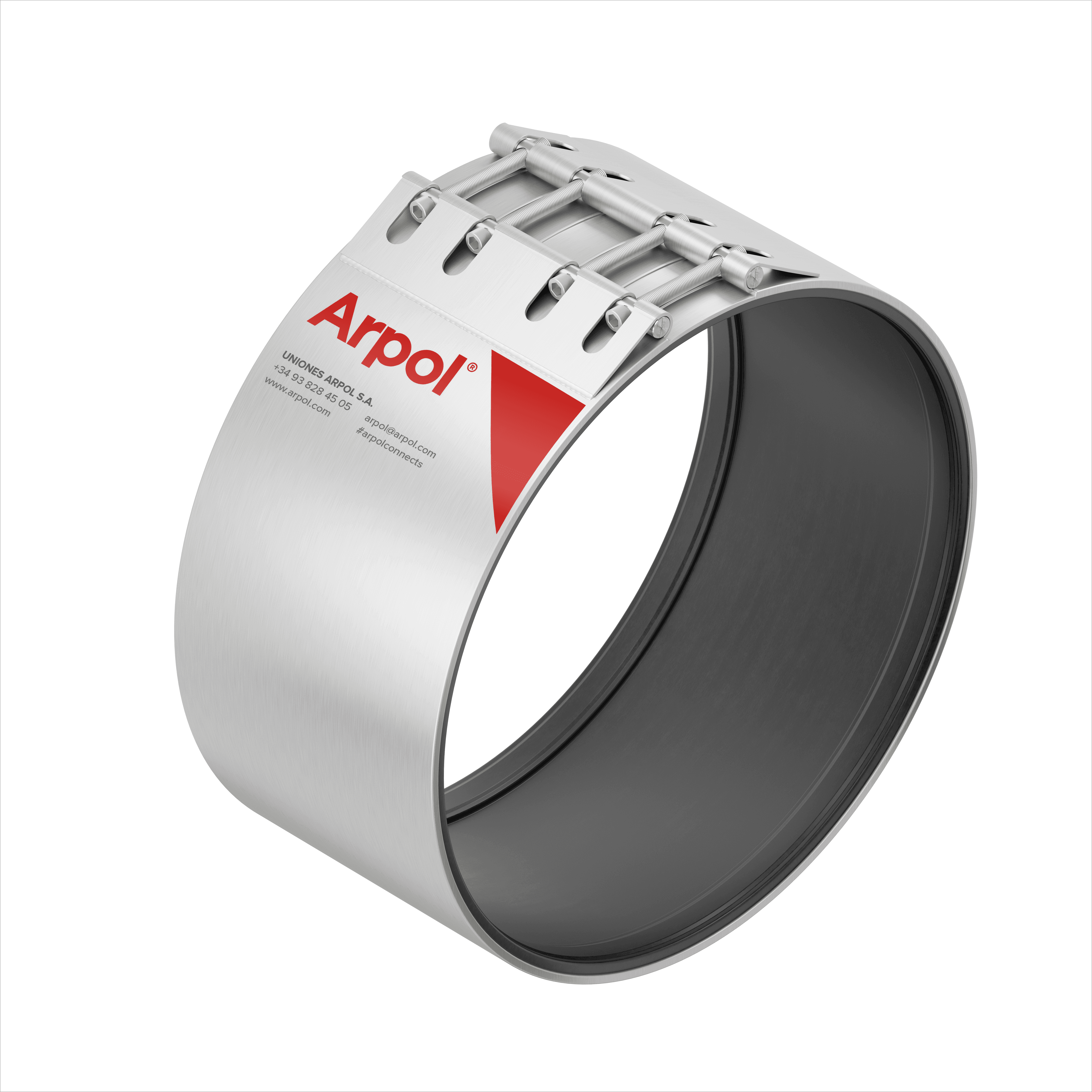

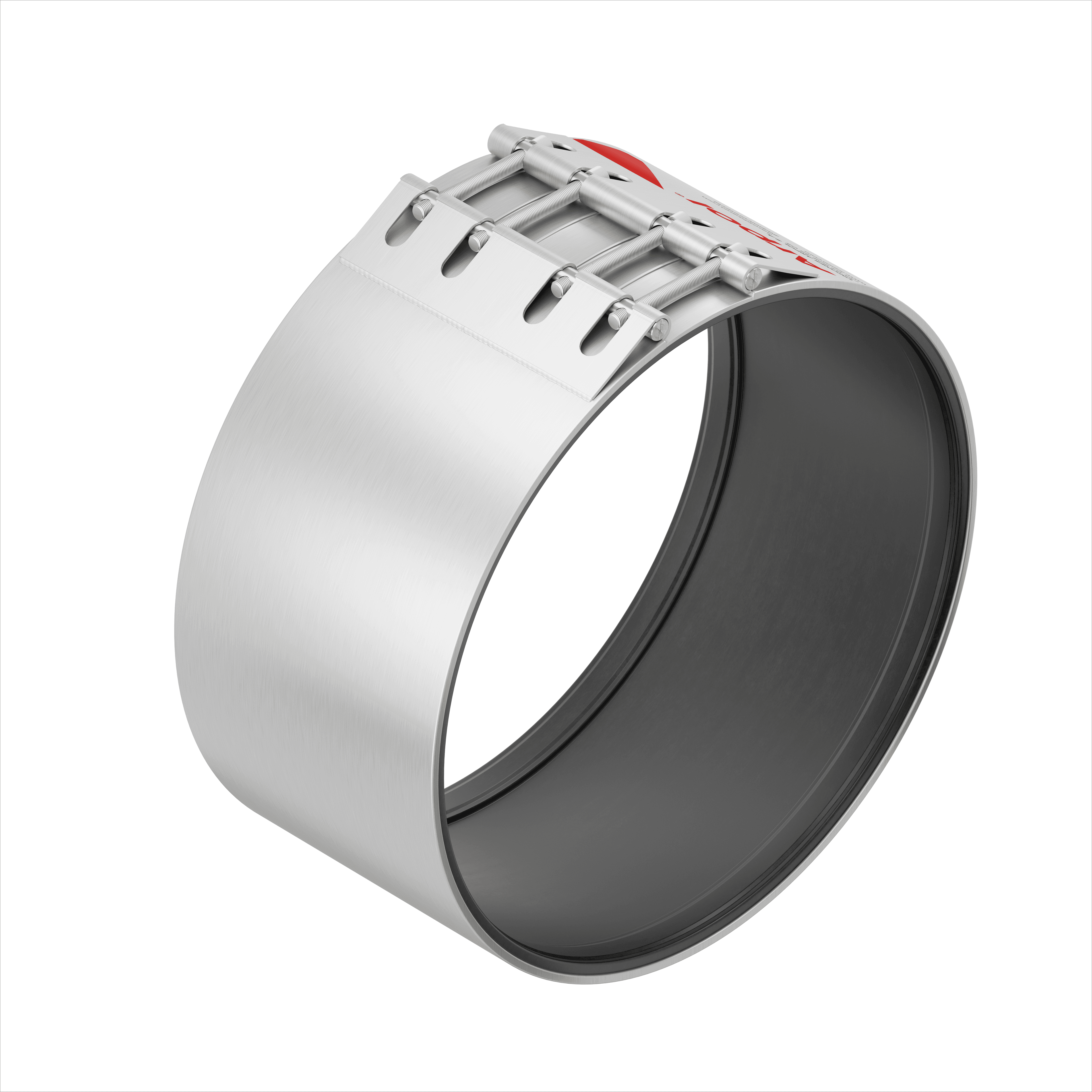

INSTAL
Arpol INSTAL is designed for efficient pipe connections in new installations and network modifications. Its single-lock design enables fast and reliable connections across different pipe materials.
Fast, flexible connections for new installations, with a made-to-measure design available in different lengths, adapting to various pipe materials and outside diameters while reducing installation time.
Advantages
Reduced bolt usage
Minimizes the number of bolts needed, simplifying assembly and decreasing installation time.
Quick assembly time
Optimized for efficiency, our couplings significantly cut down on assembly time, enabling faster project completion.
Lightweight design
Enhances ease of handling and installation, reducing physical strain and logistical costs.
Simplified installation
Engineered for ease, Arpol couplings ensure a straightforward installation process, even under challenging conditions.
No specialized machinery required
Designed for assembly without the need for heavy machinery or additional labor, facilitating a smoother and more cost-effective installation process.
Hydraulic sealing system
The technology of Arpol couplings is based on the active sealing system of the rubber gasket which allows the coupling to absorb imperfections and misalignments.
The active sealing system requires a lower torque rate than a conventional coupling that avoids to overload the pipe. The system utilizes a pressurized gasket where the elevated pressure within the pipeline presses the rubber lip against the pipe, actively creating a seal.
Materials
W1-W2
Stainless Steel casing AISI 304 L. Geomet coated carbon steel bolts and bars.
W4
Stainless steel casing AISI 304 L. Stainless steel bolts and bars AISI 304.
W5
Stainless steel casing AISI 316 L. Stainless steel bolts and bars AISI 316.
Sealing Gasket
EPDM
Suitable for water, air and some chemical products. From -20°C to 100°C.
