INSTAL

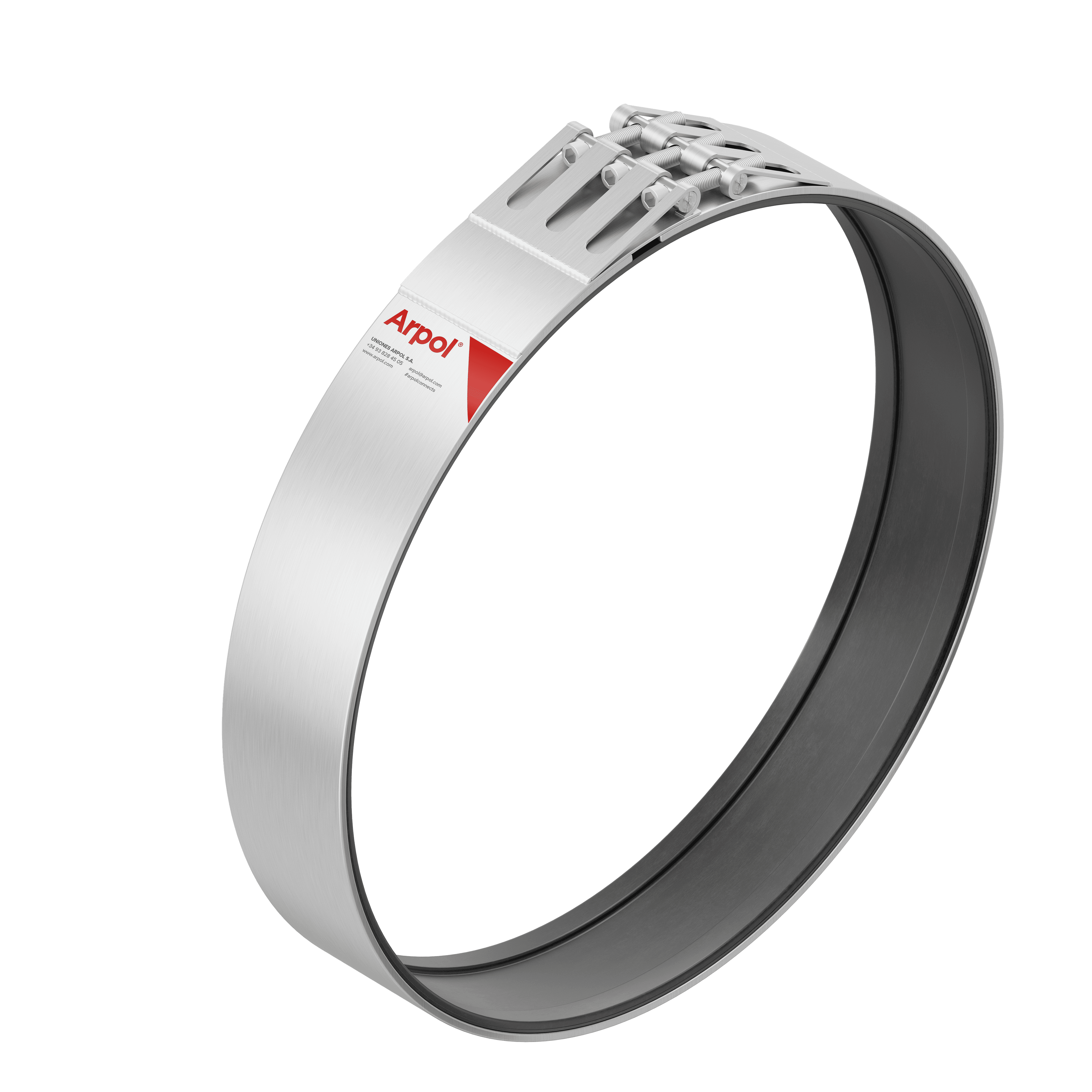

IGZ 1023-1033 A2E13

Name: IGZ 1023-1033 A2E13
Brand: Arpol

Details

Outside Diameter711–1228 mm

Pressure10–18 bar

Length200 mm

Casing qualityW5, W4

Sealing gasketSILICONE, NBR, EPDM

Ask for quote Configure

Catalogue Fitting instructions Installation instructions Technical information [mm]Technical information [in]

ODmm	Pressurebar	Gasket	Quality	T max°C
706–714	18	EPDM	W4	100
706–714	18	EPDM	W5	100
706–714	18	NBR	W4	80
706–714	18	NBR	W5	80
706–714	18	SILICONE	W4	200
706–714	18	SILICONE	W5	200
716–724	18	EPDM	W4	100
716–724	18	EPDM	W5	100
716–724	18	NBR	W4	80
716–724	18	NBR	W5	80
716–724	18	SILICONE	W4	200
716–724	18	SILICONE	W5	200
734–742	18	EPDM	W4	100
734–742	18	EPDM	W5	100
734–742	18	NBR	W4	80
734–742	18	NBR	W5	80
734–742	18	SILICONE	W4	200
734–742	18	SILICONE	W5	200
796–804	17	EPDM	W4	100
796–804	17	EPDM	W5	100
796–804	17	NBR	W4	80
796–804	17	NBR	W5	80
796–804	17	SILICONE	W4	200
796–804	17	SILICONE	W5	200
808–816	16	EPDM	W4	100
808–816	16	EPDM	W5	100
808–816	16	NBR	W4	80
808–816	16	NBR	W5	80
808–816	16	SILICONE	W4	200
808–816	16	SILICONE	W5	200
818–826	16	EPDM	W4	100
818–826	16	EPDM	W5	100
818–826	16	NBR	W4	80
818–826	16	NBR	W5	80
818–826	16	SILICONE	W4	200
818–826	16	SILICONE	W5	200
837–845	16	EPDM	W4	100
837–845	16	EPDM	W5	100
837–845	16	NBR	W4	80
837–845	16	NBR	W5	80
837–845	16	SILICONE	W4	200
837–845	16	SILICONE	W5	200
898–906	12	EPDM	W4	100
898–906	12	EPDM	W5	100
898–906	12	NBR	W4	80
898–906	12	NBR	W5	80
898–906	12	SILICONE	W4	200
898–906	12	SILICONE	W5	200
908–916	12	EPDM	W4	100
908–916	12	EPDM	W5	100
908–916	12	NBR	W4	80
908–916	12	NBR	W5	80
908–916	12	SILICONE	W4	200
908–916	12	SILICONE	W5	200
914–914	18	EPDM	W4	100
914–914	18	EPDM	W5	100
914–914	18	NBR	W4	80
914–914	18	NBR	W5	80
914–914	18	SILICONE	W4	200
914–914	18	SILICONE	W5	200
921–929	12	EPDM	W4	100
921–929	12	EPDM	W5	100
921–929	12	NBR	W4	80
921–929	12	NBR	W5	80
921–929	12	SILICONE	W4	200
921–929	12	SILICONE	W5	200
924–924	18	EPDM	W4	100
924–924	18	EPDM	W5	100
924–924	18	NBR	W4	80
924–924	18	NBR	W5	80
924–924	18	SILICONE	W4	200
924–924	18	SILICONE	W5	200
945–945	18	EPDM	W4	100
945–945	18	EPDM	W5	100
945–945	18	NBR	W4	80
945–945	18	NBR	W5	80
945–945	18	SILICONE	W4	200
945–945	18	SILICONE	W5	200
998–1008	11	EPDM	W4	100
998–1008	11	EPDM	W5	100
998–1008	11	NBR	W4	80
998–1008	11	NBR	W5	80
998–1008	11	SILICONE	W4	200
998–1008	11	SILICONE	W5	200
1000–1000	16	EPDM	W4	100
1000–1000	16	EPDM	W5	100
1000–1000	16	NBR	W4	80
1000–1000	16	NBR	W5	80
1000–1000	16	SILICONE	W4	200
1000–1000	16	SILICONE	W5	200
1011–1021	10	EPDM	W4	100
1011–1021	10	EPDM	W5	100
1011–1021	10	NBR	W4	80
1011–1021	10	NBR	W5	80
1011–1021	10	SILICONE	W4	200
1011–1021	10	SILICONE	W5	200
1016–1016	16	EPDM	W4	100
1016–1016	16	EPDM	W5	100
1016–1016	16	NBR	W4	80
1016–1016	16	NBR	W5	80
1016–1016	16	SILICONE	W4	200
1016–1016	16	SILICONE	W5	200
1023–1033	10	EPDM	W4	100
1023–1033	10	EPDM	W5	100
1023–1033	10	NBR	W4	80
1023–1033	10	NBR	W5	80
1023–1033	10	SILICONE	W4	200
1023–1033	10	SILICONE	W5	200
1026–1026	16	EPDM	W4	100
1026–1026	16	EPDM	W5	100
1026–1026	16	NBR	W4	80
1026–1026	16	NBR	W5	80
1026–1026	16	SILICONE	W4	200
1026–1026	16	SILICONE	W5	200
1042–1052	10	EPDM	W4	100
1042–1052	10	EPDM	W5	100
1042–1052	10	NBR	W4	80
1042–1052	10	NBR	W5	80
1042–1052	10	SILICONE	W4	200
1042–1052	10	SILICONE	W5	200
1048–1048	16	EPDM	W4	100
1048–1048	16	EPDM	W5	100
1048–1048	16	NBR	W4	80
1048–1048	16	NBR	W5	80
1048–1048	16	SILICONE	W4	200
1048–1048	16	SILICONE	W5	200
1112–1122	12	EPDM	W4	100
1112–1122	12	EPDM	W5	100
1112–1122	12	NBR	W4	80
1112–1122	12	NBR	W5	80
1112–1122	12	SILICONE	W4	200
1112–1122	12	SILICONE	W5	200
1124–1134	12	EPDM	W4	100
1124–1134	12	EPDM	W5	100
1124–1134	12	NBR	W4	80
1124–1134	12	NBR	W5	80
1124–1134	12	SILICONE	W4	200
1124–1134	12	SILICONE	W5	200
1152–1162	11	EPDM	W4	100
1152–1162	11	EPDM	W5	100
1152–1162	11	NBR	W4	80
1152–1162	11	NBR	W5	80
1152–1162	11	SILICONE	W4	200
1152–1162	11	SILICONE	W5	200
1198–1208	11	EPDM	W4	100
1198–1208	11	EPDM	W5	100
1198–1208	11	NBR	W4	80
1198–1208	11	NBR	W5	80
1198–1208	11	SILICONE	W4	200
1198–1208	11	SILICONE	W5	200
1213–1223	11	EPDM	W4	100
1213–1223	11	EPDM	W5	100
1213–1223	11	NBR	W4	80
1213–1223	11	NBR	W5	80
1213–1223	11	SILICONE	W4	200
1213–1223	11	SILICONE	W5	200
1226–1236	11	EPDM	W4	100
1226–1236	11	EPDM	W5	100
1226–1236	11	NBR	W4	80
1226–1236	11	NBR	W5	80
1226–1236	11	SILICONE	W4	200
1226–1236	11	SILICONE	W5	200

OD (mm)
706–714
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
706–714
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
706–714
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
706–714
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
706–714
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
706–714
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
716–724
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
716–724
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
716–724
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
716–724
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
716–724
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
716–724
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
734–742
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
734–742
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
734–742
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
734–742
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
734–742
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
734–742
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
796–804
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
796–804
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
796–804
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
796–804
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
796–804
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
796–804
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
808–816
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
808–816
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
808–816
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
808–816
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
808–816
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
808–816
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
818–826
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
818–826
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
818–826
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
818–826
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
818–826
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
818–826
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
837–845
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
837–845
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
837–845
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
837–845
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
837–845
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
837–845
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
898–906
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
898–906
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
898–906
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
898–906
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
898–906
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
898–906
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
908–916
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
908–916
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
908–916
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
908–916
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
908–916
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
908–916
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
914–914
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
914–914
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
914–914
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
914–914
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
914–914
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
914–914
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
921–929
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
921–929
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
921–929
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
921–929
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
921–929
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
921–929
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
924–924
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
924–924
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
924–924
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
924–924
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
924–924
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
924–924
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
945–945
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
945–945
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
945–945
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
945–945
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
945–945
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
945–945
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
998–1008
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
998–1008
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
998–1008
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
998–1008
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
998–1008
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
998–1008
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1011–1021
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1011–1021
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1011–1021
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1011–1021
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1011–1021
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1011–1021
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1023–1033
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1023–1033
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1023–1033
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1023–1033
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1023–1033
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1023–1033
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1042–1052
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1042–1052
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1042–1052
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1042–1052
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1042–1052
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1042–1052
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1112–1122
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1112–1122
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1112–1122
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1112–1122
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1112–1122
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1112–1122
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1124–1134
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1124–1134
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1124–1134
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1124–1134
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1124–1134
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1124–1134
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1152–1162
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1152–1162
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1152–1162
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1152–1162
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1152–1162
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1152–1162
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1198–1208
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1198–1208
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1198–1208
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1198–1208
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1198–1208
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1198–1208
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1213–1223
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1213–1223
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1213–1223
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1213–1223
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1213–1223
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1213–1223
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1226–1236
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1226–1236
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1226–1236
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1226–1236
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1226–1236
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1226–1236
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200

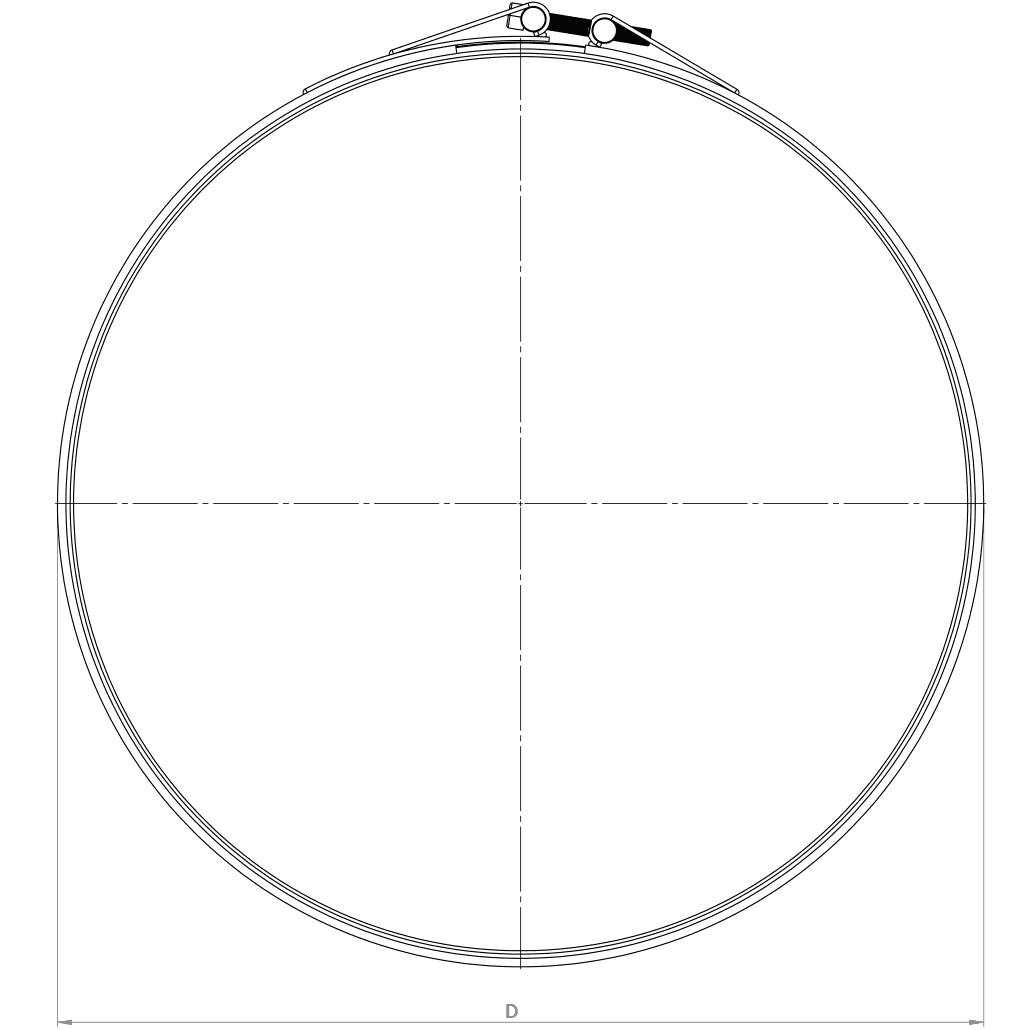

IGZ 1023-1033 A2E13

Details

Downloads

Videos
