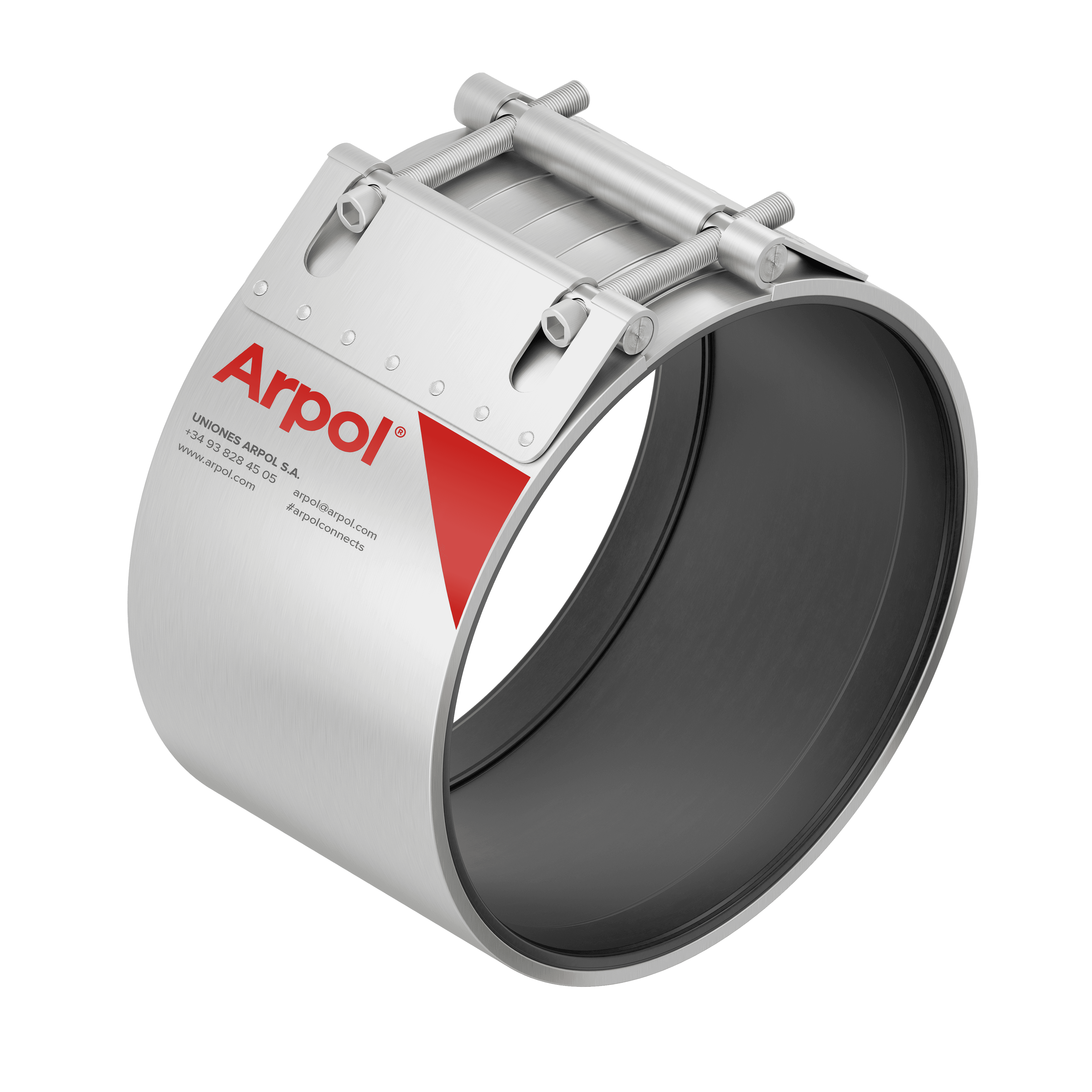

IBZ 320-326 A2E13

Name: IBZ 320-326 A2E13
Brand: Arpol

Details

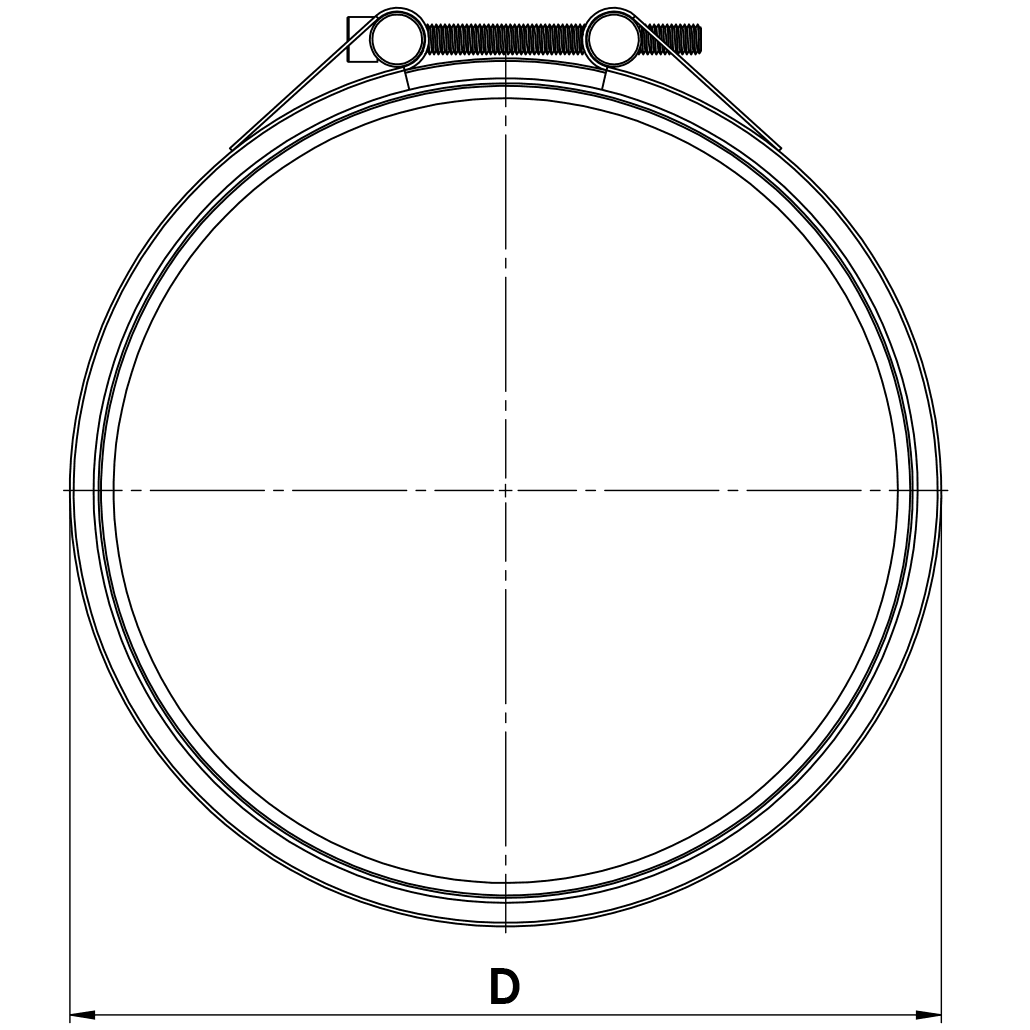

Outside Diameter168–479 mm

Pressure11–23 bar

Length200 mm

Casing qualityW5, W4

Sealing gasketSILICONE, NBR, EPDM

Ask for quote Configure

Catalogue Fitting instructions Installation instructions Technical information [mm]Technical information [in]

ODmm	Pressurebar	Gasket	Quality	T max°C
166–172	23	EPDM	W4	100
166–172	23	EPDM	W5	100
166–172	23	NBR	W4	80
166–172	23	NBR	W5	80
166–172	23	SILICONE	W4	200
166–172	23	SILICONE	W5	200
177–183	23	EPDM	W4	100
177–183	23	EPDM	W5	100
177–183	23	NBR	W4	80
177–183	23	NBR	W5	80
177–183	23	SILICONE	W4	200
177–183	23	SILICONE	W5	200
197–203	23	EPDM	W4	100
197–203	23	EPDM	W5	100
197–203	23	NBR	W4	80
197–203	23	NBR	W5	80
197–203	23	SILICONE	W4	200
197–203	23	SILICONE	W5	200
208–214	18	EPDM	W4	100
208–214	18	EPDM	W5	100
208–214	18	NBR	W4	80
208–214	18	NBR	W5	80
208–214	18	SILICONE	W4	200
208–214	18	SILICONE	W5	200
217–223	18	EPDM	W4	100
217–223	18	EPDM	W5	100
217–223	18	NBR	W4	80
217–223	18	NBR	W5	80
217–223	18	SILICONE	W4	200
217–223	18	SILICONE	W5	200
220–226	18	EPDM	W4	100
220–226	18	EPDM	W5	100
220–226	18	NBR	W4	80
220–226	18	NBR	W5	80
220–226	18	SILICONE	W4	200
220–226	18	SILICONE	W5	200
242–248	18	EPDM	W4	100
242–248	18	EPDM	W5	100
242–248	18	NBR	W4	80
242–248	18	NBR	W5	80
242–248	18	SILICONE	W4	200
242–248	18	SILICONE	W5	200
248–254	18	EPDM	W4	100
248–254	18	EPDM	W5	100
248–254	18	NBR	W4	80
248–254	18	NBR	W5	80
248–254	18	SILICONE	W4	200
248–254	18	SILICONE	W5	200
270–276	15	EPDM	W4	100
270–276	15	EPDM	W5	100
270–276	15	NBR	W4	80
270–276	15	NBR	W5	80
270–276	15	SILICONE	W4	200
270–276	15	SILICONE	W5	200
270–276	19	EPDM	W4	100
270–276	19	EPDM	W5	100
270–276	19	NBR	W4	80
270–276	19	NBR	W5	80
270–276	19	SILICONE	W4	200
270–276	19	SILICONE	W5	200
278–284	15	EPDM	W4	100
278–284	15	EPDM	W5	100
278–284	15	NBR	W4	80
278–284	15	NBR	W5	80
278–284	15	SILICONE	W4	200
278–284	15	SILICONE	W5	200
278–284	19	EPDM	W4	100
278–284	19	EPDM	W5	100
278–284	19	NBR	W4	80
278–284	19	NBR	W5	80
278–284	19	SILICONE	W4	200
278–284	19	SILICONE	W5	200
310–316	12	EPDM	W4	100
310–316	12	EPDM	W5	100
310–316	12	NBR	W4	80
310–316	12	NBR	W5	80
310–316	12	SILICONE	W4	200
310–316	12	SILICONE	W5	200
310–316	16	EPDM	W4	100
310–316	16	EPDM	W5	100
310–316	16	NBR	W4	80
310–316	16	NBR	W5	80
310–316	16	SILICONE	W4	200
310–316	16	SILICONE	W5	200
320–326	12	EPDM	W4	100
320–326	12	EPDM	W5	100
320–326	12	NBR	W4	80
320–326	12	NBR	W5	80
320–326	12	SILICONE	W4	200
320–326	12	SILICONE	W5	200
320–326	16	EPDM	W4	100
320–326	16	EPDM	W5	100
320–326	16	NBR	W4	80
320–326	16	NBR	W5	80
320–326	16	SILICONE	W4	200
320–326	16	SILICONE	W5	200
352–358	11	EPDM	W4	100
352–358	11	EPDM	W5	100
352–358	11	NBR	W4	80
352–358	11	NBR	W5	80
352–358	11	SILICONE	W4	200
352–358	11	SILICONE	W5	200
352–358	18	EPDM	W4	100
352–358	18	EPDM	W5	100
352–358	18	NBR	W4	80
352–358	18	NBR	W5	80
352–358	18	SILICONE	W4	200
352–358	18	SILICONE	W5	200
360–366	11	EPDM	W4	100
360–366	11	EPDM	W5	100
360–366	11	NBR	W4	80
360–366	11	NBR	W5	80
360–366	11	SILICONE	W4	200
360–366	11	SILICONE	W5	200
375–381	11	EPDM	W4	100
375–381	11	EPDM	W5	100
375–381	11	NBR	W4	80
375–381	11	NBR	W5	80
375–381	11	SILICONE	W4	200
375–381	11	SILICONE	W5	200
375–381	18	EPDM	W4	100
375–381	18	EPDM	W5	100
375–381	18	NBR	W4	80
375–381	18	NBR	W5	80
375–381	18	SILICONE	W4	200
375–381	18	SILICONE	W5	200
398–404	11	EPDM	W4	100
398–404	11	EPDM	W5	100
398–404	11	NBR	W4	80
398–404	11	NBR	W5	80
398–404	11	SILICONE	W4	200
398–404	11	SILICONE	W5	200
398–404	18	EPDM	W4	100
398–404	18	EPDM	W5	100
398–404	18	NBR	W4	80
398–404	18	NBR	W5	80
398–404	18	SILICONE	W4	200
398–404	18	SILICONE	W5	200
403–409	13	EPDM	W4	100
403–409	13	EPDM	W5	100
403–409	13	NBR	W4	80
403–409	13	NBR	W5	80
403–409	13	SILICONE	W4	200
403–409	13	SILICONE	W5	200
403–409	16	EPDM	W4	100
403–409	16	EPDM	W5	100
403–409	16	NBR	W4	80
403–409	16	NBR	W5	80
403–409	16	SILICONE	W4	200
403–409	16	SILICONE	W5	200
411–417	13	EPDM	W4	100
411–417	13	EPDM	W5	100
411–417	13	NBR	W4	80
411–417	13	NBR	W5	80
411–417	13	SILICONE	W4	200
411–417	13	SILICONE	W5	200
411–417	16	EPDM	W4	100
411–417	16	EPDM	W5	100
411–417	16	NBR	W4	80
411–417	16	NBR	W5	80
411–417	16	SILICONE	W4	200
411–417	16	SILICONE	W5	200
426–432	13	EPDM	W4	100
426–432	13	EPDM	W5	100
426–432	13	NBR	W4	80
426–432	13	NBR	W5	80
426–432	13	SILICONE	W4	200
426–432	13	SILICONE	W5	200
426–432	16	EPDM	W4	100
426–432	16	EPDM	W5	100
426–432	16	NBR	W4	80
426–432	16	NBR	W5	80
426–432	16	SILICONE	W4	200
426–432	16	SILICONE	W5	200
448–454	13	EPDM	W4	100
448–454	13	EPDM	W5	100
448–454	13	NBR	W4	80
448–454	13	NBR	W5	80
448–454	13	SILICONE	W4	200
448–454	13	SILICONE	W5	200
448–454	16	EPDM	W4	100
448–454	16	EPDM	W5	100
448–454	16	NBR	W4	80
448–454	16	NBR	W5	80
448–454	16	SILICONE	W4	200
448–454	16	SILICONE	W5	200
454–460	11	EPDM	W4	100
454–460	11	EPDM	W5	100
454–460	11	NBR	W4	80
454–460	11	NBR	W5	80
454–460	11	SILICONE	W4	200
454–460	11	SILICONE	W5	200
454–460	17	EPDM	W4	100
454–460	17	EPDM	W5	100
454–460	17	NBR	W4	80
454–460	17	NBR	W5	80
454–460	17	SILICONE	W4	200
454–460	17	SILICONE	W5	200
477–483	11	EPDM	W4	100
477–483	11	EPDM	W5	100
477–483	11	NBR	W4	80
477–483	11	NBR	W5	80
477–483	11	SILICONE	W4	200
477–483	11	SILICONE	W5	200
477–483	17	EPDM	W4	100
477–483	17	EPDM	W5	100
477–483	17	NBR	W4	80
477–483	17	NBR	W5	80
477–483	17	SILICONE	W4	200
477–483	17	SILICONE	W5	200

OD (mm)
166–172
Pressure (bar)
23
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
166–172
Pressure (bar)
23
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
166–172
Pressure (bar)
23
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
166–172
Pressure (bar)
23
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
166–172
Pressure (bar)
23
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
166–172
Pressure (bar)
23
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
177–183
Pressure (bar)
23
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
177–183
Pressure (bar)
23
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
177–183
Pressure (bar)
23
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
177–183
Pressure (bar)
23
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
177–183
Pressure (bar)
23
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
177–183
Pressure (bar)
23
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
197–203
Pressure (bar)
23
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
197–203
Pressure (bar)
23
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
197–203
Pressure (bar)
23
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
197–203
Pressure (bar)
23
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
197–203
Pressure (bar)
23
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
197–203
Pressure (bar)
23
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
208–214
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
208–214
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
208–214
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
208–214
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
208–214
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
208–214
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
217–223
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
217–223
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
217–223
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
217–223
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
217–223
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
217–223
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
220–226
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
220–226
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
220–226
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
220–226
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
220–226
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
220–226
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
242–248
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
242–248
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
242–248
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
242–248
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
242–248
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
242–248
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
248–254
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
248–254
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
248–254
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
248–254
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
248–254
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
248–254
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
270–276
Pressure (bar)
15
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
270–276
Pressure (bar)
15
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
270–276
Pressure (bar)
15
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
270–276
Pressure (bar)
15
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
270–276
Pressure (bar)
15
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
270–276
Pressure (bar)
15
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
270–276
Pressure (bar)
19
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
270–276
Pressure (bar)
19
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
270–276
Pressure (bar)
19
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
270–276
Pressure (bar)
19
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
270–276
Pressure (bar)
19
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
270–276
Pressure (bar)
19
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
278–284
Pressure (bar)
15
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
278–284
Pressure (bar)
15
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
278–284
Pressure (bar)
15
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
278–284
Pressure (bar)
15
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
278–284
Pressure (bar)
15
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
278–284
Pressure (bar)
15
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
278–284
Pressure (bar)
19
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
278–284
Pressure (bar)
19
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
278–284
Pressure (bar)
19
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
278–284
Pressure (bar)
19
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
278–284
Pressure (bar)
19
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
278–284
Pressure (bar)
19
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
310–316
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
310–316
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
310–316
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
310–316
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
310–316
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
310–316
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
310–316
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
310–316
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
310–316
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
310–316
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
310–316
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
310–316
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
320–326
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
320–326
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
320–326
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
320–326
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
320–326
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
320–326
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
320–326
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
320–326
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
320–326
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
320–326
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
320–326
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
320–326
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
352–358
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
352–358
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
352–358
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
352–358
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
352–358
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
352–358
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
352–358
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
352–358
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
352–358
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
352–358
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
352–358
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
352–358
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
360–366
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
360–366
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
360–366
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
360–366
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
360–366
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
360–366
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
375–381
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
375–381
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
375–381
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
375–381
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
375–381
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
375–381
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
375–381
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
375–381
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
375–381
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
375–381
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
375–381
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
375–381
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
398–404
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
398–404
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
398–404
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
398–404
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
398–404
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
398–404
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
398–404
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
398–404
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
398–404
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
398–404
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
398–404
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
398–404
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
403–409
Pressure (bar)
13
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
403–409
Pressure (bar)
13
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
403–409
Pressure (bar)
13
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
403–409
Pressure (bar)
13
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
403–409
Pressure (bar)
13
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
403–409
Pressure (bar)
13
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
403–409
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
403–409
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
403–409
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
403–409
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
403–409
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
403–409
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
411–417
Pressure (bar)
13
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
411–417
Pressure (bar)
13
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
411–417
Pressure (bar)
13
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
411–417
Pressure (bar)
13
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
411–417
Pressure (bar)
13
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
411–417
Pressure (bar)
13
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
411–417
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
411–417
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
411–417
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
411–417
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
411–417
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
411–417
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
426–432
Pressure (bar)
13
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
426–432
Pressure (bar)
13
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
426–432
Pressure (bar)
13
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
426–432
Pressure (bar)
13
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
426–432
Pressure (bar)
13
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
426–432
Pressure (bar)
13
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
426–432
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
426–432
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
426–432
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
426–432
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
426–432
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
426–432
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
448–454
Pressure (bar)
13
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
448–454
Pressure (bar)
13
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
448–454
Pressure (bar)
13
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
448–454
Pressure (bar)
13
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
448–454
Pressure (bar)
13
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
448–454
Pressure (bar)
13
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
448–454
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
448–454
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
448–454
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
448–454
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
448–454
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
448–454
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
454–460
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
454–460
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
454–460
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
454–460
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
454–460
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
454–460
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
454–460
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
454–460
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
454–460
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
454–460
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
454–460
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
454–460
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
477–483
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
477–483
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
477–483
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
477–483
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
477–483
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
477–483
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
477–483
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
477–483
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
477–483
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
477–483
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
477–483
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
477–483
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200

IBZ 320-326 A2E13

Details

Downloads

Videos
