INSTAL

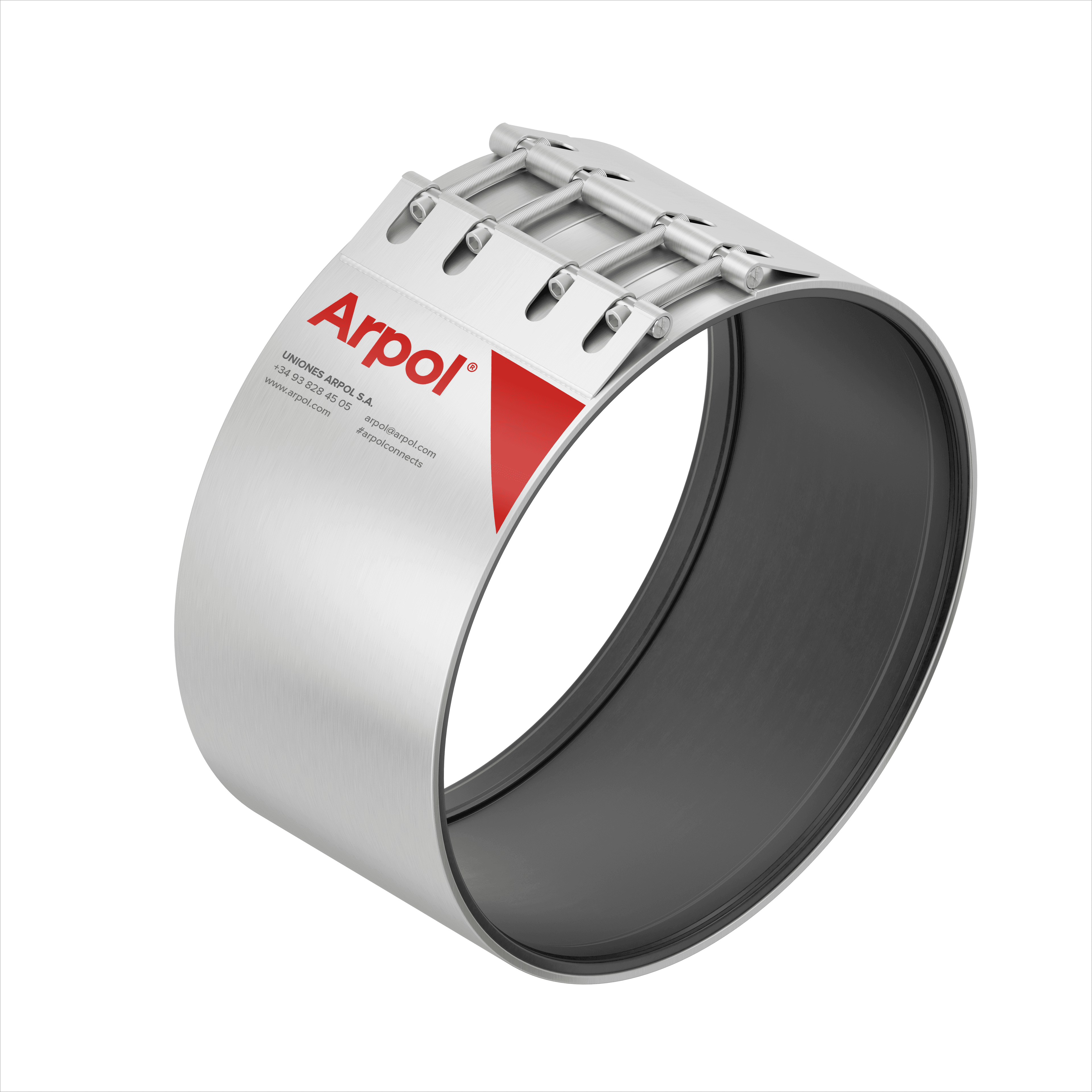

IDW 614-622 A2E11
Details

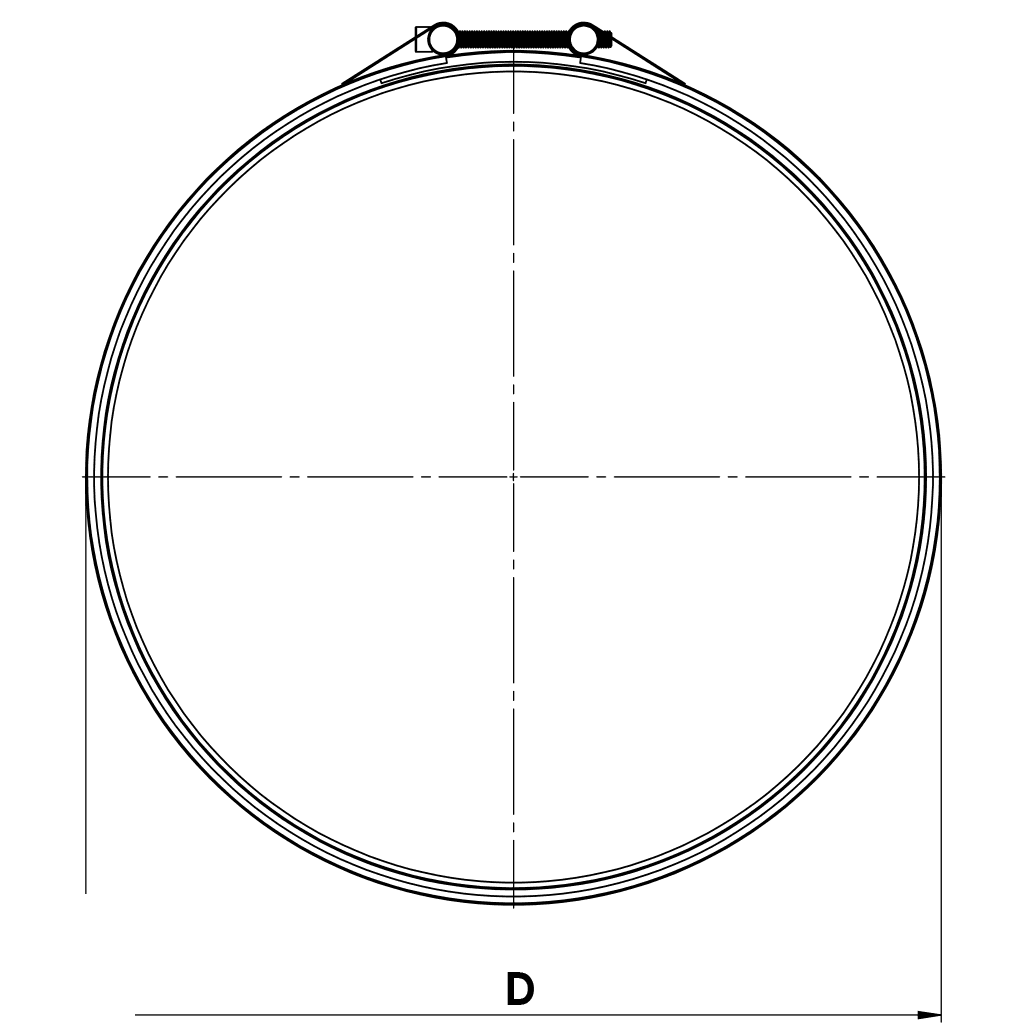

Outside Diameter500–820 mm
Pressure10–17 bar
Length300 mm
Casing qualityW5, W4
Sealing gasketSILICONE, NBR, EPDM
| ODmm | Pressurebar | Gasket | Quality | T max°C | Add to basket |
|---|---|---|---|---|---|
| 496–504 | 11 | EPDM | W4 | 100 | |
| 496–504 | 11 | EPDM | W5 | 100 | |
| 496–504 | 11 | NBR | W4 | 80 | |
| 496–504 | 11 | NBR | W5 | 80 | |
| 496–504 | 11 | SILICONE | W4 | 200 | |
| 496–504 | 11 | SILICONE | W5 | 200 | |
| 496–504 | 17 | EPDM | W4 | 100 | |
| 496–504 | 17 | EPDM | W5 | 100 | |
| 496–504 | 17 | NBR | W4 | 80 | |
| 496–504 | 17 | NBR | W5 | 80 | |
| 496–504 | 17 | SILICONE | W4 | 200 | |
| 496–504 | 17 | SILICONE | W5 | 200 | |
| 716–724 | 11 | EPDM | W4 | 100 | |
| 716–724 | 11 | EPDM | W5 | 100 | |
| 716–724 | 11 | NBR | W4 | 80 | |
| 716–724 | 11 | NBR | W5 | 80 | |
| 716–724 | 11 | SILICONE | W4 | 200 | |
| 716–724 | 11 | SILICONE | W5 | 200 | |
| 796–804 | 10 | EPDM | W4 | 100 | |
| 796–804 | 10 | EPDM | W5 | 100 | |
| 796–804 | 10 | NBR | W4 | 80 | |
| 796–804 | 10 | NBR | W5 | 80 | |
| 796–804 | 10 | SILICONE | W4 | 200 | |
| 796–804 | 10 | SILICONE | W5 | 200 | |
| 818–826 | 10 | EPDM | W4 | 100 | |
| 818–826 | 10 | EPDM | W5 | 100 | |
| 818–826 | 10 | NBR | W4 | 80 | |
| 818–826 | 10 | NBR | W5 | 80 | |
| 818–826 | 10 | SILICONE | W4 | 200 | |
| 818–826 | 10 | SILICONE | W5 | 200 |
- OD (mm)
- 496–504
- Pressure (bar)
- 11
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 496–504
- Pressure (bar)
- 11
- Gasket
- EPDM
- Quality
- W5
- T max (°C)
- 100
- OD (mm)
- 496–504
- Pressure (bar)
- 11
- Gasket
- NBR
- Quality
- W4
- T max (°C)
- 80
- OD (mm)
- 496–504
- Pressure (bar)
- 11
- Gasket
- NBR
- Quality
- W5
- T max (°C)
- 80
- OD (mm)
- 496–504
- Pressure (bar)
- 11
- Gasket
- SILICONE
- Quality
- W4
- T max (°C)
- 200
- OD (mm)
- 496–504
- Pressure (bar)
- 11
- Gasket
- SILICONE
- Quality
- W5
- T max (°C)
- 200
- OD (mm)
- 496–504
- Pressure (bar)
- 17
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 496–504
- Pressure (bar)
- 17
- Gasket
- EPDM
- Quality
- W5
- T max (°C)
- 100
- OD (mm)
- 496–504
- Pressure (bar)
- 17
- Gasket
- NBR
- Quality
- W4
- T max (°C)
- 80
- OD (mm)
- 496–504
- Pressure (bar)
- 17
- Gasket
- NBR
- Quality
- W5
- T max (°C)
- 80
- OD (mm)
- 496–504
- Pressure (bar)
- 17
- Gasket
- SILICONE
- Quality
- W4
- T max (°C)
- 200
- OD (mm)
- 496–504
- Pressure (bar)
- 17
- Gasket
- SILICONE
- Quality
- W5
- T max (°C)
- 200
- OD (mm)
- 716–724
- Pressure (bar)
- 11
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 716–724
- Pressure (bar)
- 11
- Gasket
- EPDM
- Quality
- W5
- T max (°C)
- 100
- OD (mm)
- 716–724
- Pressure (bar)
- 11
- Gasket
- NBR
- Quality
- W4
- T max (°C)
- 80
- OD (mm)
- 716–724
- Pressure (bar)
- 11
- Gasket
- NBR
- Quality
- W5
- T max (°C)
- 80
- OD (mm)
- 716–724
- Pressure (bar)
- 11
- Gasket
- SILICONE
- Quality
- W4
- T max (°C)
- 200
- OD (mm)
- 716–724
- Pressure (bar)
- 11
- Gasket
- SILICONE
- Quality
- W5
- T max (°C)
- 200
- OD (mm)
- 796–804
- Pressure (bar)
- 10
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 796–804
- Pressure (bar)
- 10
- Gasket
- EPDM
- Quality
- W5
- T max (°C)
- 100
- OD (mm)
- 796–804
- Pressure (bar)
- 10
- Gasket
- NBR
- Quality
- W4
- T max (°C)
- 80
- OD (mm)
- 796–804
- Pressure (bar)
- 10
- Gasket
- NBR
- Quality
- W5
- T max (°C)
- 80
- OD (mm)
- 796–804
- Pressure (bar)
- 10
- Gasket
- SILICONE
- Quality
- W4
- T max (°C)
- 200
- OD (mm)
- 796–804
- Pressure (bar)
- 10
- Gasket
- SILICONE
- Quality
- W5
- T max (°C)
- 200
- OD (mm)
- 818–826
- Pressure (bar)
- 10
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 818–826
- Pressure (bar)
- 10
- Gasket
- EPDM
- Quality
- W5
- T max (°C)
- 100
- OD (mm)
- 818–826
- Pressure (bar)
- 10
- Gasket
- NBR
- Quality
- W4
- T max (°C)
- 80
- OD (mm)
- 818–826
- Pressure (bar)
- 10
- Gasket
- NBR
- Quality
- W5
- T max (°C)
- 80
- OD (mm)
- 818–826
- Pressure (bar)
- 10
- Gasket
- SILICONE
- Quality
- W4
- T max (°C)
- 200
- OD (mm)
- 818–826
- Pressure (bar)
- 10
- Gasket
- SILICONE
- Quality
- W5
- T max (°C)
- 200
