INSTAL

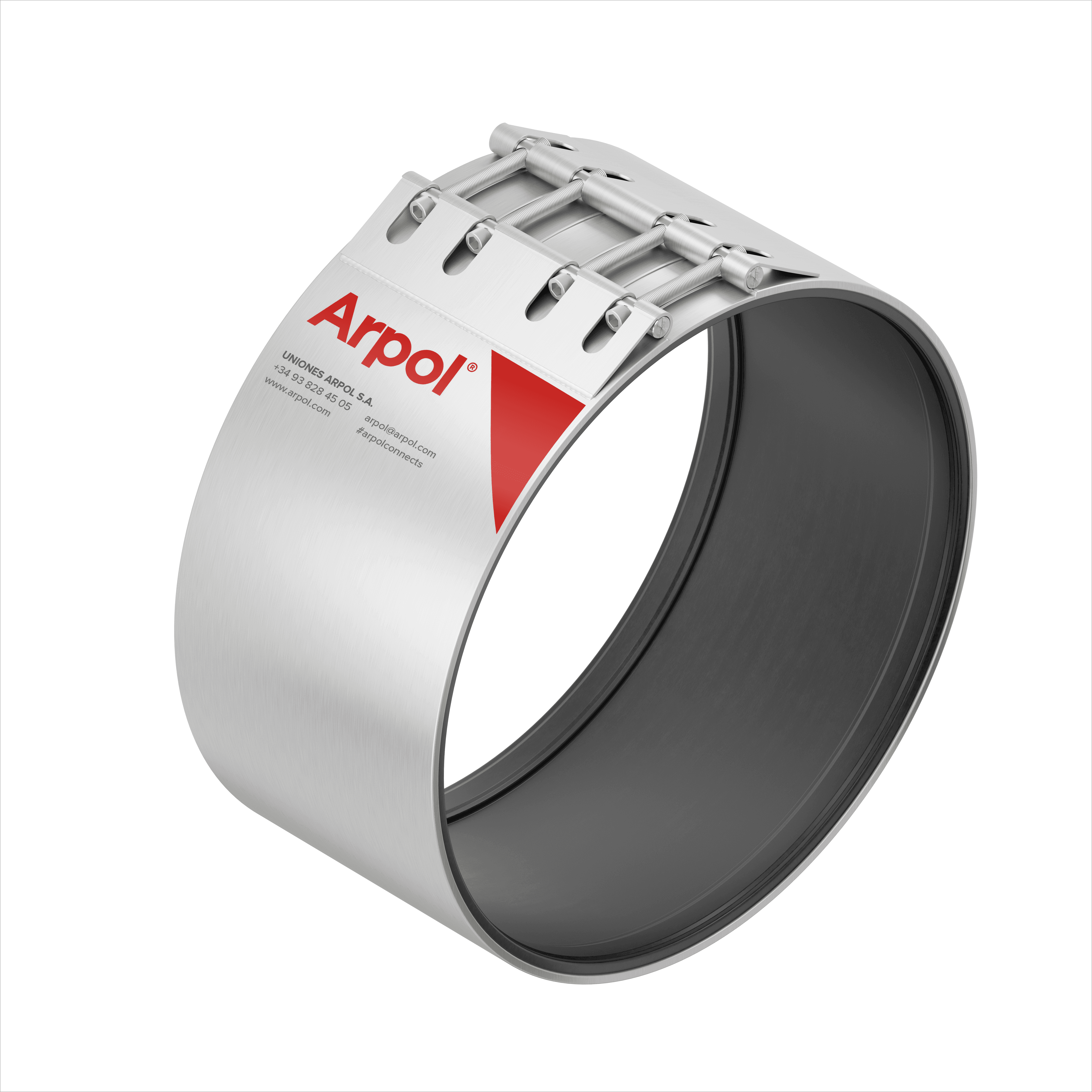

IBW 320-326 A2E13
Details

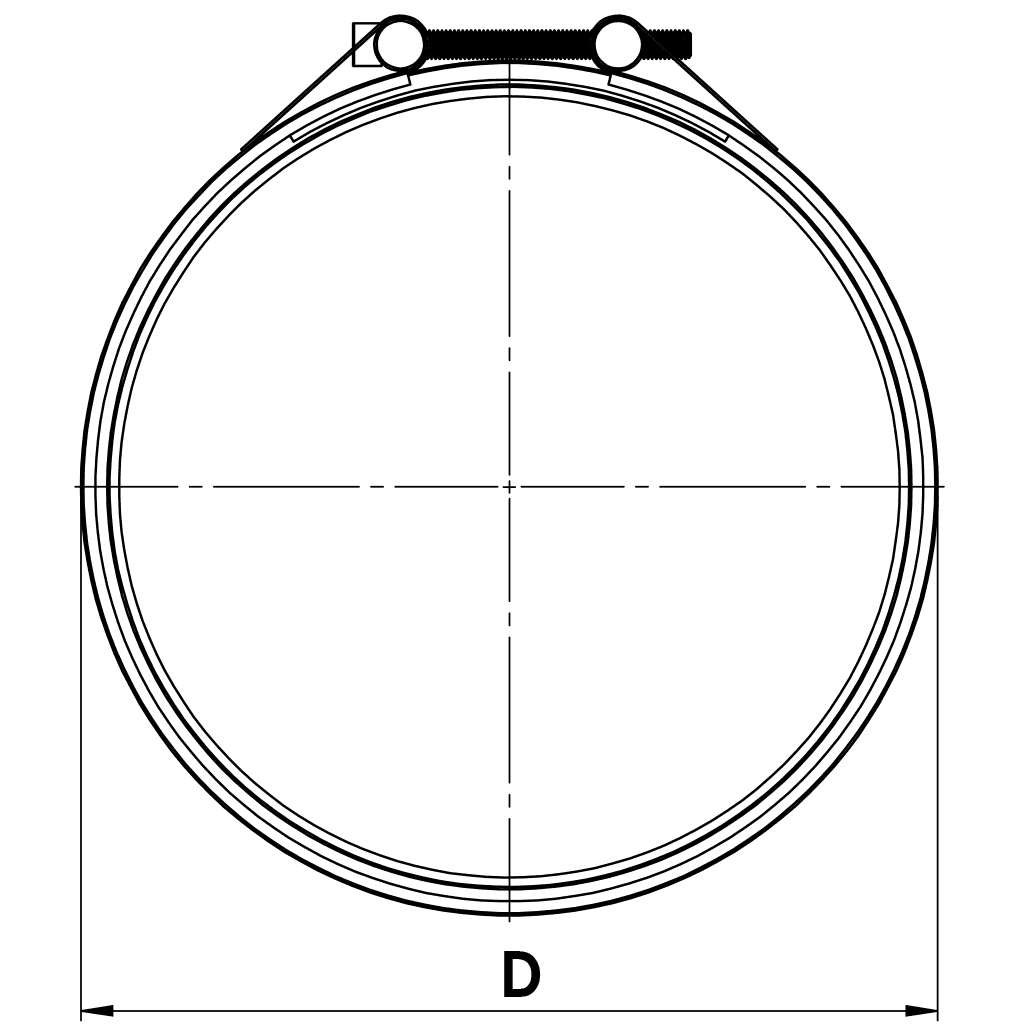

Outside Diameter398–457 mm
Pressure11–16 bar

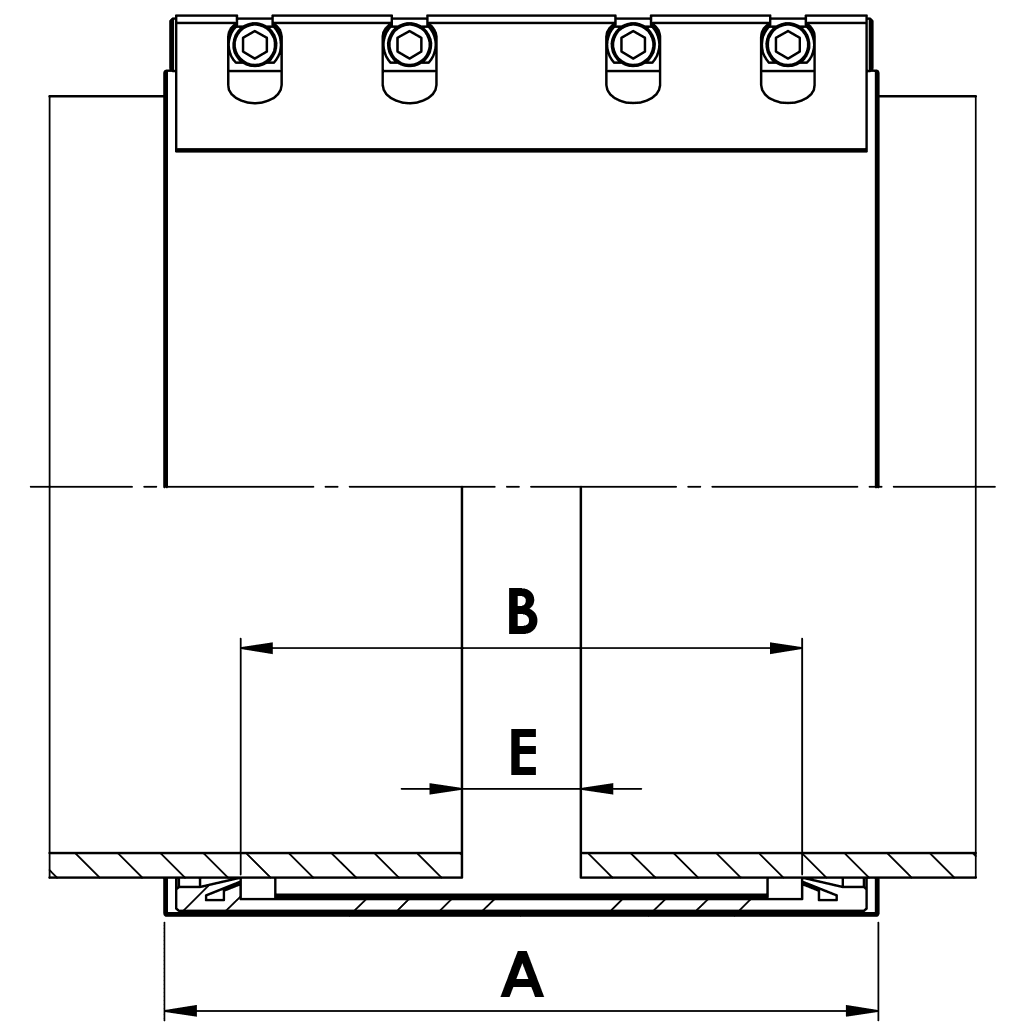

Length300 mm
Casing qualityW5, W4
Sealing gasketSILICONE, NBR, EPDM
| ODmm | Pressurebar | Gasket | Quality | T max°C | Add to basket |
|---|---|---|---|---|---|
| 398–404 | 11 | EPDM | W4 | 100 | |
| 398–404 | 11 | EPDM | W5 | 100 | |
| 398–404 | 11 | NBR | W4 | 80 | |
| 398–404 | 11 | NBR | W5 | 80 | |
| 398–404 | 11 | SILICONE | W4 | 200 | |
| 398–404 | 11 | SILICONE | W5 | 200 | |
| 426–432 | 16 | EPDM | W4 | 100 | |
| 426–432 | 16 | EPDM | W5 | 100 | |
| 426–432 | 16 | NBR | W4 | 80 | |
| 426–432 | 16 | NBR | W5 | 80 | |
| 426–432 | 16 | SILICONE | W4 | 200 | |
| 426–432 | 16 | SILICONE | W5 | 200 | |
| 448–454 | 13 | EPDM | W4 | 100 | |
| 448–454 | 13 | EPDM | W5 | 100 | |
| 448–454 | 13 | NBR | W4 | 80 | |
| 448–454 | 13 | NBR | W5 | 80 | |
| 448–454 | 13 | SILICONE | W4 | 200 | |
| 448–454 | 13 | SILICONE | W5 | 200 | |
| 454–460 | 11 | EPDM | W4 | 100 | |
| 454–460 | 11 | EPDM | W5 | 100 | |
| 454–460 | 11 | NBR | W4 | 80 | |
| 454–460 | 11 | NBR | W5 | 80 | |
| 454–460 | 11 | SILICONE | W4 | 200 | |
| 454–460 | 11 | SILICONE | W5 | 200 |
