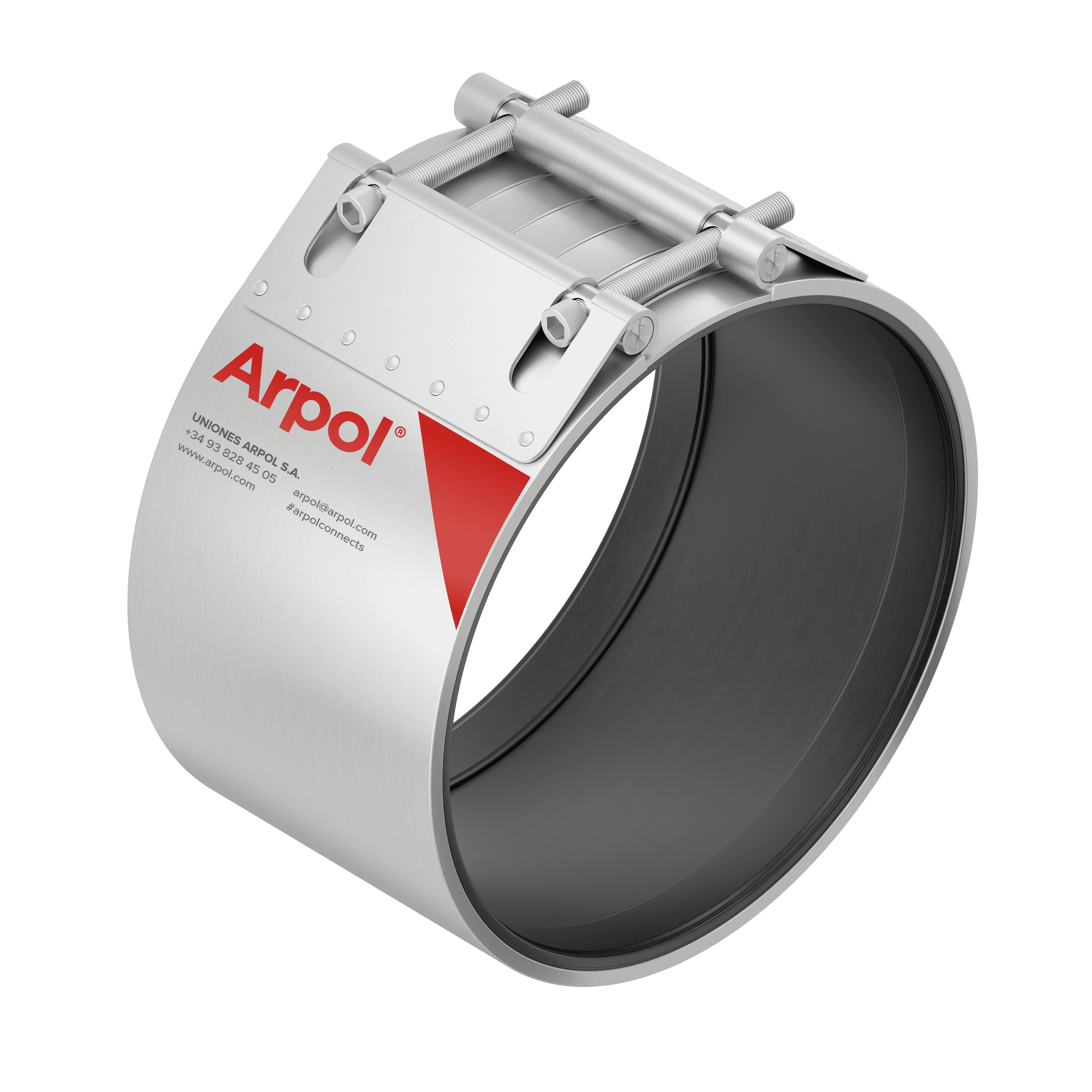

IBX 166-171 A2E20

Name: IBX 166-171 A2E20
Brand: Arpol

Details

Outside Diameter48–167 mm

Pressure20–45 bar

Length75–90 mm

Casing qualityW5, W4

Sealing gasketSILICONE, NBR, EPDM

Ask for quote Configure

Catalogue Fitting instructions Installation instructions Technical information [mm]Technical information [in]

ODmm	Pressurebar	Gasket	Quality	T max°C
47–49	45	EPDM	W4	100
47–49	45	EPDM	W5	100
47–49	45	NBR	W4	80
47–49	45	NBR	W5	80
47–49	45	SILICONE	W4	200
47–49	45	SILICONE	W5	200
49–51	45	EPDM	W4	100
49–51	45	EPDM	W5	100
49–51	45	NBR	W4	80
49–51	45	NBR	W5	80
49–51	45	SILICONE	W4	200
49–51	45	SILICONE	W5	200
56–58	40	EPDM	W4	100
56–58	40	EPDM	W5	100
56–58	40	NBR	W4	80
56–58	40	NBR	W5	80
56–58	40	SILICONE	W4	200
56–58	40	SILICONE	W5	200
59–61	40	EPDM	W4	100
59–61	40	EPDM	W5	100
59–61	40	NBR	W4	80
59–61	40	NBR	W5	80
59–61	40	SILICONE	W4	200
59–61	40	SILICONE	W5	200
62–65	40	EPDM	W4	100
62–65	40	EPDM	W5	100
62–65	40	NBR	W4	80
62–65	40	NBR	W5	80
62–65	40	SILICONE	W4	200
62–65	40	SILICONE	W5	200
74–77	30	EPDM	W4	100
74–77	30	EPDM	W5	100
74–77	30	NBR	W4	80
74–77	30	NBR	W5	80
74–77	30	SILICONE	W4	200
74–77	30	SILICONE	W5	200
82–85	30	EPDM	W4	100
82–85	30	EPDM	W5	100
82–85	30	NBR	W4	80
82–85	30	NBR	W5	80
82–85	30	SILICONE	W4	200
82–85	30	SILICONE	W5	200
87–91	30	EPDM	W4	100
87–91	30	EPDM	W5	100
87–91	30	NBR	W4	80
87–91	30	NBR	W5	80
87–91	30	SILICONE	W4	200
87–91	30	SILICONE	W5	200
107–111	30	EPDM	W4	100
107–111	30	EPDM	W5	100
107–111	30	NBR	W4	80
107–111	30	NBR	W5	80
107–111	30	SILICONE	W4	200
107–111	30	SILICONE	W5	200
112–117	30	EPDM	W4	100
112–117	30	EPDM	W5	100
112–117	30	NBR	W4	80
112–117	30	NBR	W5	80
112–117	30	SILICONE	W4	200
112–117	30	SILICONE	W5	200
124–127	20	EPDM	W4	100
124–127	20	EPDM	W5	100
124–127	20	NBR	W4	80
124–127	20	NBR	W5	80
124–127	20	SILICONE	W4	200
124–127	20	SILICONE	W5	200
127–131	20	EPDM	W4	100
127–131	20	EPDM	W5	100
127–131	20	NBR	W4	80
127–131	20	NBR	W5	80
127–131	20	SILICONE	W4	200
127–131	20	SILICONE	W5	200
131–136	20	EPDM	W4	100
131–136	20	EPDM	W5	100
131–136	20	NBR	W4	80
131–136	20	NBR	W5	80
131–136	20	SILICONE	W4	200
131–136	20	SILICONE	W5	200
137–142	20	EPDM	W4	100
137–142	20	EPDM	W5	100
137–142	20	NBR	W4	80
137–142	20	NBR	W5	80
137–142	20	SILICONE	W4	200
137–142	20	SILICONE	W5	200
152–156	20	EPDM	W4	100
152–156	20	EPDM	W5	100
152–156	20	NBR	W4	80
152–156	20	NBR	W5	80
152–156	20	SILICONE	W4	200
152–156	20	SILICONE	W5	200
156–161	20	EPDM	W4	100
156–161	20	EPDM	W5	100
156–161	20	NBR	W4	80
156–161	20	NBR	W5	80
156–161	20	SILICONE	W4	200
156–161	20	SILICONE	W5	200
158–162	20	EPDM	W4	100
158–162	20	EPDM	W5	100
158–162	20	NBR	W4	80
158–162	20	NBR	W5	80
158–162	20	SILICONE	W4	200
158–162	20	SILICONE	W5	200
166–171	20	EPDM	W4	100
166–171	20	EPDM	W5	100
166–171	20	NBR	W4	80
166–171	20	NBR	W5	80
166–171	20	SILICONE	W4	200
166–171	20	SILICONE	W5	200
