INSTAL

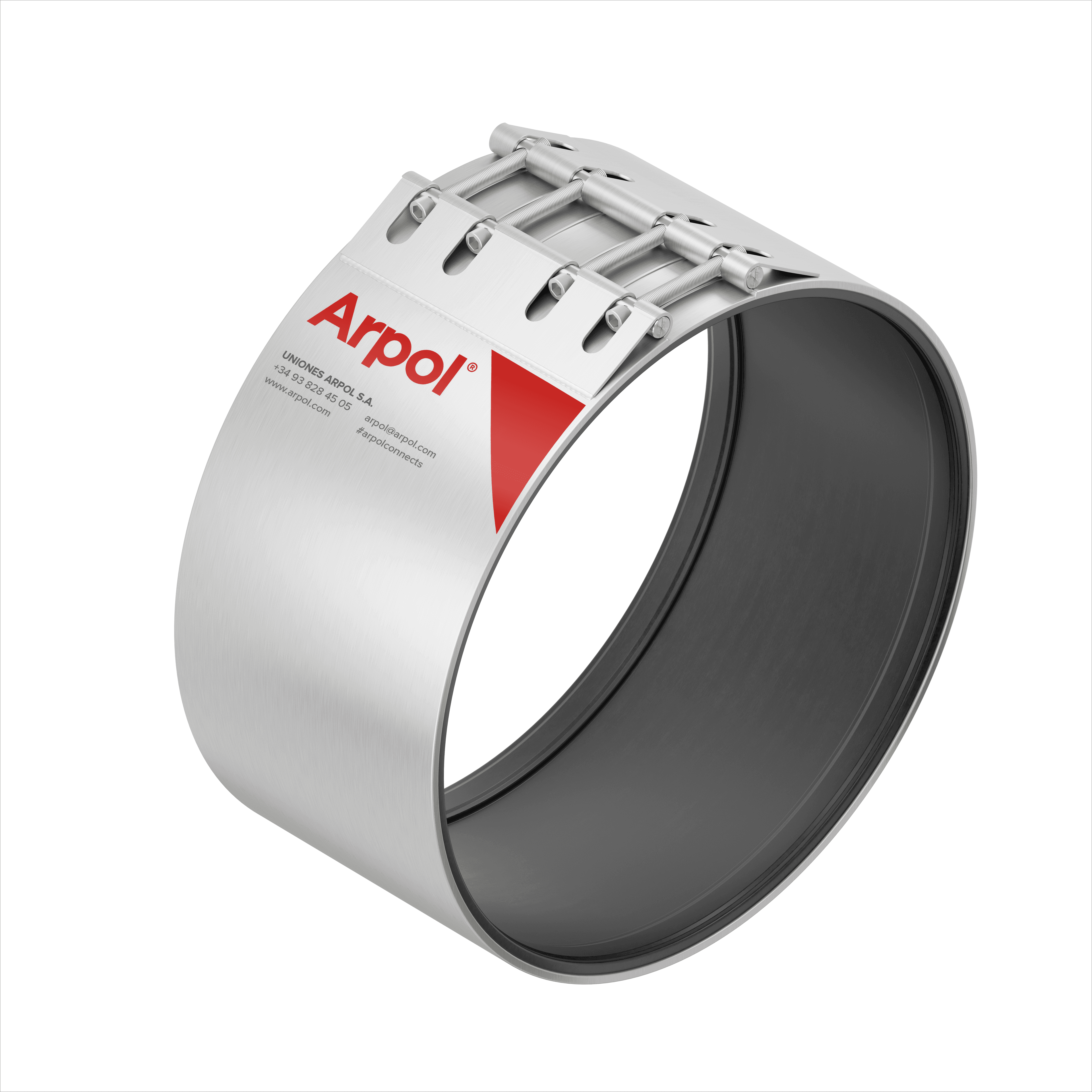

IGW 1023-1033 A2E13
Details

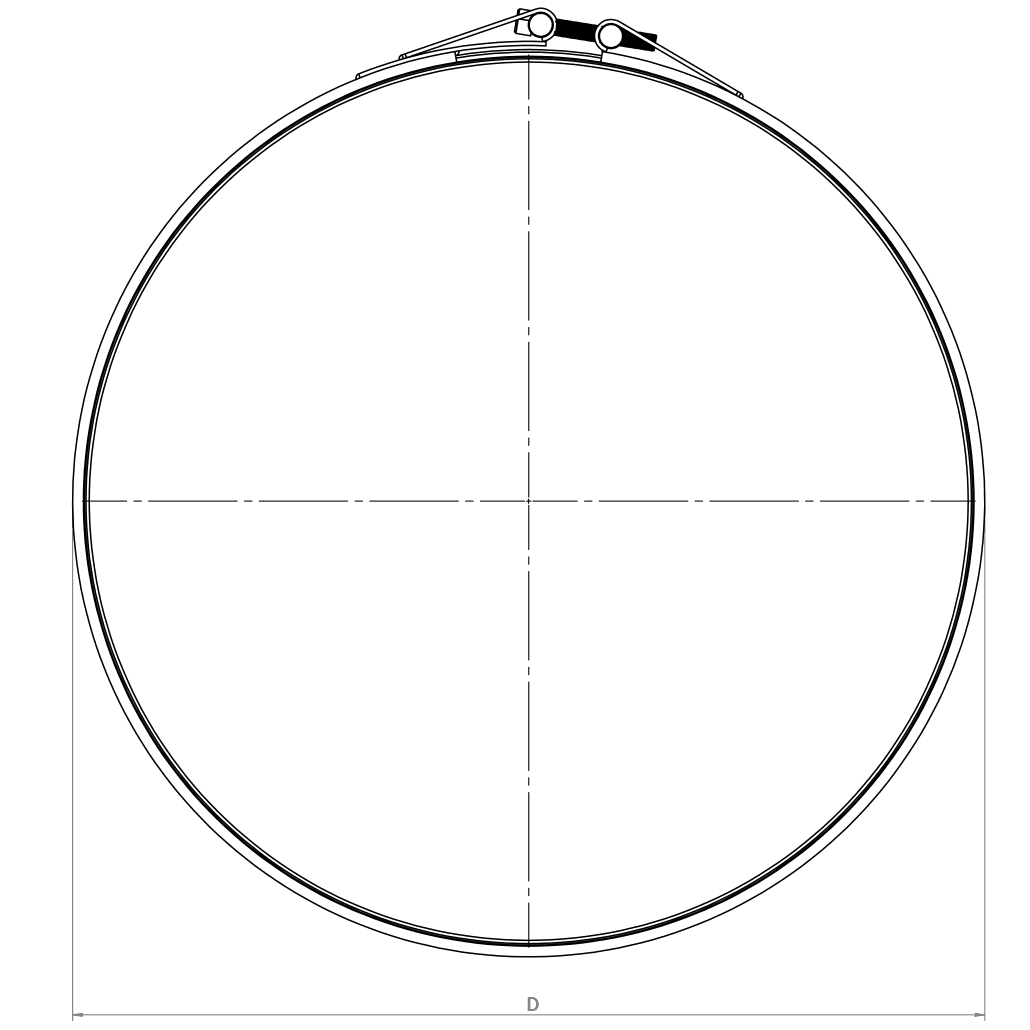

Outside Diameter718–1229 mm
Pressure11–19 bar
Length300 mm
Casing qualityW5, W4
Sealing gasketSILICONE, NBR, EPDM
| ODmm | Pressurebar | Gasket | Quality | T max°C | Add to basket |
|---|---|---|---|---|---|
| 716–724 | 18 | EPDM | W4 | 100 | |
| 716–724 | 18 | EPDM | W5 | 100 | |
| 716–724 | 18 | NBR | W4 | 80 | |
| 716–724 | 18 | NBR | W5 | 80 | |
| 716–724 | 18 | SILICONE | W4 | 200 | |
| 716–724 | 18 | SILICONE | W5 | 200 | |
| 818–826 | 16 | EPDM | W4 | 100 | |
| 818–826 | 16 | EPDM | W5 | 100 | |
| 818–826 | 16 | NBR | W4 | 80 | |
| 818–826 | 16 | NBR | W5 | 80 | |
| 818–826 | 16 | SILICONE | W4 | 200 | |
| 818–826 | 16 | SILICONE | W5 | 200 | |
| 1118–1118 | 19 | EPDM | W4 | 100 | |
| 1118–1118 | 19 | EPDM | W5 | 100 | |
| 1118–1118 | 19 | NBR | W4 | 80 | |
| 1118–1118 | 19 | NBR | W5 | 80 | |
| 1118–1118 | 19 | SILICONE | W4 | 200 | |
| 1118–1118 | 19 | SILICONE | W5 | 200 | |
| 1124–1134 | 12 | EPDM | W4 | 100 | |
| 1124–1134 | 12 | EPDM | W5 | 100 | |
| 1124–1134 | 12 | NBR | W4 | 80 | |
| 1124–1134 | 12 | NBR | W5 | 80 | |
| 1124–1134 | 12 | SILICONE | W4 | 200 | |
| 1124–1134 | 12 | SILICONE | W5 | 200 | |
| 1219–1219 | 17 | EPDM | W4 | 100 | |
| 1219–1219 | 17 | EPDM | W5 | 100 | |
| 1219–1219 | 17 | NBR | W4 | 80 | |
| 1219–1219 | 17 | NBR | W5 | 80 | |
| 1219–1219 | 17 | SILICONE | W4 | 200 | |
| 1219–1219 | 17 | SILICONE | W5 | 200 | |
| 1226–1236 | 11 | EPDM | W4 | 100 | |
| 1226–1236 | 11 | EPDM | W5 | 100 | |
| 1226–1236 | 11 | NBR | W4 | 80 | |
| 1226–1236 | 11 | NBR | W5 | 80 | |
| 1226–1236 | 11 | SILICONE | W4 | 200 | |
| 1226–1236 | 11 | SILICONE | W5 | 200 |
