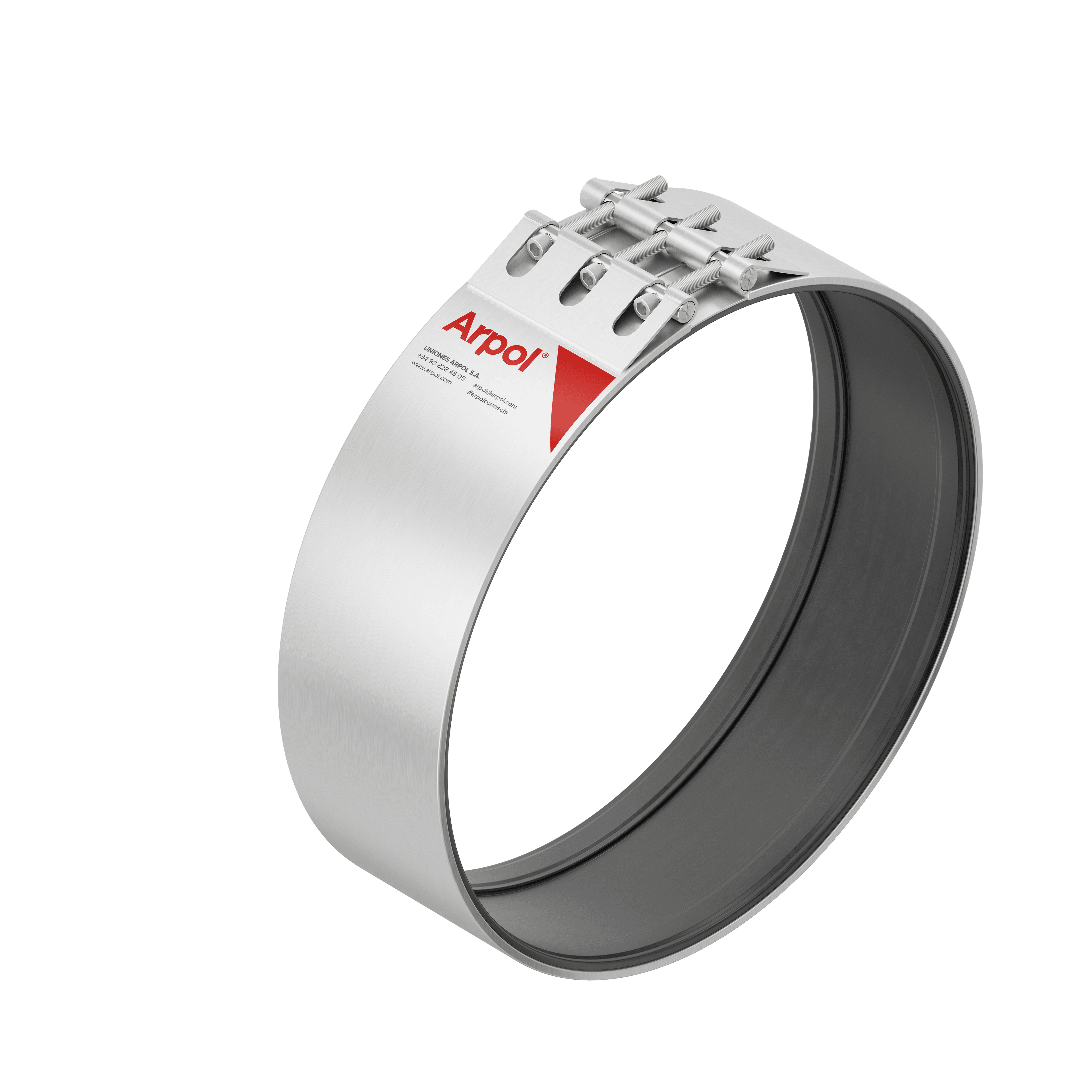

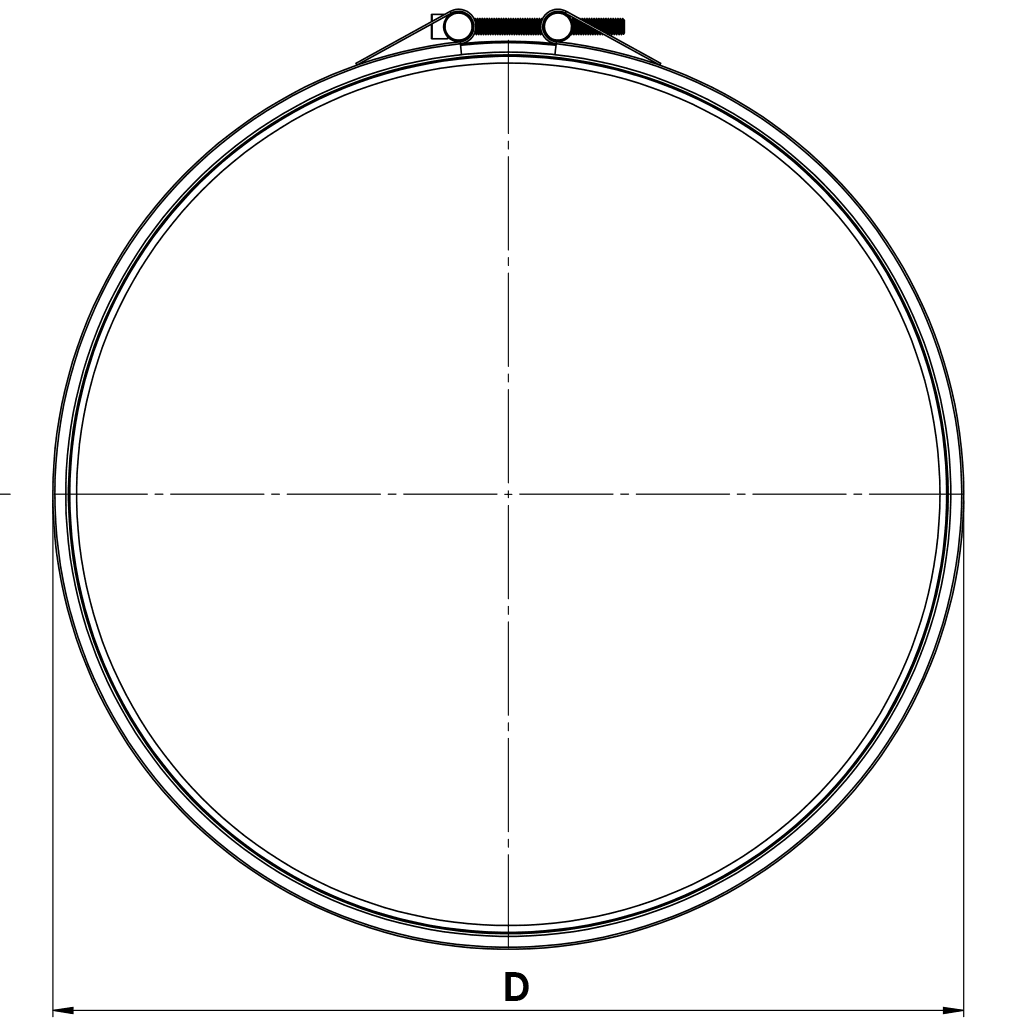

IDZ 614-622 A2E11

Name: IDZ 614-622 A2E11
Brand: Arpol

Details

Outside Diameter500–842 mm

Pressure10–20 bar

Length200 mm

Casing qualityW5, W4

Sealing gasketSILICONE, NBR, EPDM

Ask for quote Configure

Catalogue Fitting instructions Installation instructions Technical information [mm]Technical information [in]

ODmm	Pressurebar	Gasket	Quality	T max°C
496–504	11	EPDM	W4	100
496–504	11	EPDM	W5	100
496–504	11	NBR	W4	80
496–504	11	NBR	W5	80
496–504	11	SILICONE	W4	200
496–504	11	SILICONE	W5	200
496–504	17	EPDM	W4	100
496–504	17	EPDM	W5	100
496–504	17	NBR	W4	80
496–504	17	NBR	W5	80
496–504	17	SILICONE	W4	200
496–504	17	SILICONE	W5	200
504–512	13	EPDM	W4	100
504–512	13	EPDM	W5	100
504–512	13	NBR	W4	80
504–512	13	NBR	W5	80
504–512	13	SILICONE	W4	200
504–512	13	SILICONE	W5	200
504–512	20	EPDM	W4	100
504–512	20	EPDM	W5	100
504–512	20	NBR	W4	80
504–512	20	NBR	W5	80
504–512	20	SILICONE	W4	200
504–512	20	SILICONE	W5	200
528–536	10	EPDM	W4	100
528–536	10	EPDM	W5	100
528–536	10	NBR	W4	80
528–536	10	NBR	W5	80
528–536	10	SILICONE	W4	200
528–536	10	SILICONE	W5	200
528–536	20	EPDM	W4	100
528–536	20	EPDM	W5	100
528–536	20	NBR	W4	80
528–536	20	NBR	W5	80
528–536	20	SILICONE	W4	200
528–536	20	SILICONE	W5	200
555–563	12	EPDM	W4	100
555–563	12	EPDM	W5	100
555–563	12	NBR	W4	80
555–563	12	NBR	W5	80
555–563	12	SILICONE	W4	200
555–563	12	SILICONE	W5	200
555–563	19	EPDM	W4	100
555–563	19	EPDM	W5	100
555–563	19	NBR	W4	80
555–563	19	NBR	W5	80
555–563	19	SILICONE	W4	200
555–563	19	SILICONE	W5	200
605–613	11	EPDM	W4	100
605–613	11	EPDM	W5	100
605–613	11	NBR	W4	80
605–613	11	NBR	W5	80
605–613	11	SILICONE	W4	200
605–613	11	SILICONE	W5	200
605–613	17	EPDM	W4	100
605–613	17	EPDM	W5	100
605–613	17	NBR	W4	80
605–613	17	NBR	W5	80
605–613	17	SILICONE	W4	200
605–613	17	SILICONE	W5	200
614–622	11	EPDM	W4	100
614–622	11	EPDM	W5	100
614–622	11	NBR	W4	80
614–622	11	NBR	W5	80
614–622	11	SILICONE	W4	200
614–622	11	SILICONE	W5	200
614–622	17	EPDM	W4	100
614–622	17	EPDM	W5	100
614–622	17	NBR	W4	80
614–622	17	NBR	W5	80
614–622	17	SILICONE	W4	200
614–622	17	SILICONE	W5	200
628–636	11	EPDM	W4	100
628–636	11	EPDM	W5	100
628–636	11	NBR	W4	80
628–636	11	NBR	W5	80
628–636	11	SILICONE	W4	200
628–636	11	SILICONE	W5	200
628–636	17	EPDM	W4	100
628–636	17	EPDM	W5	100
628–636	17	NBR	W4	80
628–636	17	NBR	W5	80
628–636	17	SILICONE	W4	200
628–636	17	SILICONE	W5	200
632–640	17	EPDM	W4	100
632–640	17	EPDM	W5	100
632–640	17	NBR	W4	80
632–640	17	NBR	W5	80
632–640	17	SILICONE	W4	200
632–640	17	SILICONE	W5	200
656–664	12	EPDM	W4	100
656–664	12	EPDM	W5	100
656–664	12	NBR	W4	80
656–664	12	NBR	W5	80
656–664	12	SILICONE	W4	200
656–664	12	SILICONE	W5	200
656–664	16	EPDM	W4	100
656–664	16	EPDM	W5	100
656–664	16	NBR	W4	80
656–664	16	NBR	W5	80
656–664	16	SILICONE	W4	200
656–664	16	SILICONE	W5	200
706–714	11	EPDM	W4	100
706–714	11	EPDM	W5	100
706–714	11	NBR	W4	80
706–714	11	NBR	W5	80
706–714	11	SILICONE	W4	200
706–714	11	SILICONE	W5	200
716–724	11	EPDM	W4	100
716–724	11	EPDM	W5	100
716–724	11	NBR	W4	80
716–724	11	NBR	W5	80
716–724	11	SILICONE	W4	200
716–724	11	SILICONE	W5	200
734–742	11	EPDM	W4	100
734–742	11	EPDM	W5	100
734–742	11	NBR	W4	80
734–742	11	NBR	W5	80
734–742	11	SILICONE	W4	200
734–742	11	SILICONE	W5	200
796–804	10	EPDM	W4	100
796–804	10	EPDM	W5	100
796–804	10	NBR	W4	80
796–804	10	NBR	W5	80
796–804	10	SILICONE	W4	200
796–804	10	SILICONE	W5	200
808–816	10	EPDM	W4	100
808–816	10	EPDM	W5	100
808–816	10	NBR	W4	80
808–816	10	NBR	W5	80
808–816	10	SILICONE	W4	200
808–816	10	SILICONE	W5	200
818–826	10	EPDM	W4	100
818–826	10	EPDM	W5	100
818–826	10	NBR	W4	80
818–826	10	NBR	W5	80
818–826	10	SILICONE	W4	200
818–826	10	SILICONE	W5	200
837–845	10	EPDM	W4	100
837–845	10	EPDM	W5	100
837–845	10	NBR	W4	80
837–845	10	NBR	W5	80
837–845	10	SILICONE	W4	200
837–845	10	SILICONE	W5	200

OD (mm)
496–504
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
496–504
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
496–504
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
496–504
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
496–504
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
496–504
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
496–504
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
496–504
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
496–504
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
496–504
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
496–504
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
496–504
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
504–512
Pressure (bar)
13
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
504–512
Pressure (bar)
13
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
504–512
Pressure (bar)
13
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
504–512
Pressure (bar)
13
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
504–512
Pressure (bar)
13
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
504–512
Pressure (bar)
13
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
504–512
Pressure (bar)
20
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
504–512
Pressure (bar)
20
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
504–512
Pressure (bar)
20
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
504–512
Pressure (bar)
20
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
504–512
Pressure (bar)
20
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
504–512
Pressure (bar)
20
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
528–536
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
528–536
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
528–536
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
528–536
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
528–536
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
528–536
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
528–536
Pressure (bar)
20
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
528–536
Pressure (bar)
20
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
528–536
Pressure (bar)
20
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
528–536
Pressure (bar)
20
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
528–536
Pressure (bar)
20
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
528–536
Pressure (bar)
20
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
555–563
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
555–563
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
555–563
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
555–563
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
555–563
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
555–563
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
555–563
Pressure (bar)
19
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
555–563
Pressure (bar)
19
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
555–563
Pressure (bar)
19
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
555–563
Pressure (bar)
19
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
555–563
Pressure (bar)
19
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
555–563
Pressure (bar)
19
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
605–613
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
605–613
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
605–613
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
605–613
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
605–613
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
605–613
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
605–613
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
605–613
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
605–613
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
605–613
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
605–613
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
605–613
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
614–622
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
614–622
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
614–622
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
614–622
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
614–622
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
614–622
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
614–622
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
614–622
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
614–622
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
614–622
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
614–622
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
614–622
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
628–636
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
628–636
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
628–636
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
628–636
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
628–636
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
628–636
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
628–636
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
628–636
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
628–636
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
628–636
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
628–636
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
628–636
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
632–640
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
632–640
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
632–640
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
632–640
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
632–640
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
632–640
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
656–664
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
656–664
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
656–664
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
656–664
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
656–664
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
656–664
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
656–664
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
656–664
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
656–664
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
656–664
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
656–664
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
656–664
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
706–714
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
706–714
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
706–714
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
706–714
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
706–714
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
706–714
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
716–724
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
716–724
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
716–724
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
716–724
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
716–724
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
716–724
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
734–742
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
734–742
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
734–742
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
734–742
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
734–742
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
734–742
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
796–804
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
796–804
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
796–804
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
796–804
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
796–804
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
796–804
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
808–816
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
808–816
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
808–816
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
808–816
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
808–816
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
808–816
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
818–826
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
818–826
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
818–826
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
818–826
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
818–826
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
818–826
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
837–845
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
837–845
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
837–845
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
837–845
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
837–845
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
837–845
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200

IDZ 614-622 A2E11

Details

Downloads

Videos
