REP-3

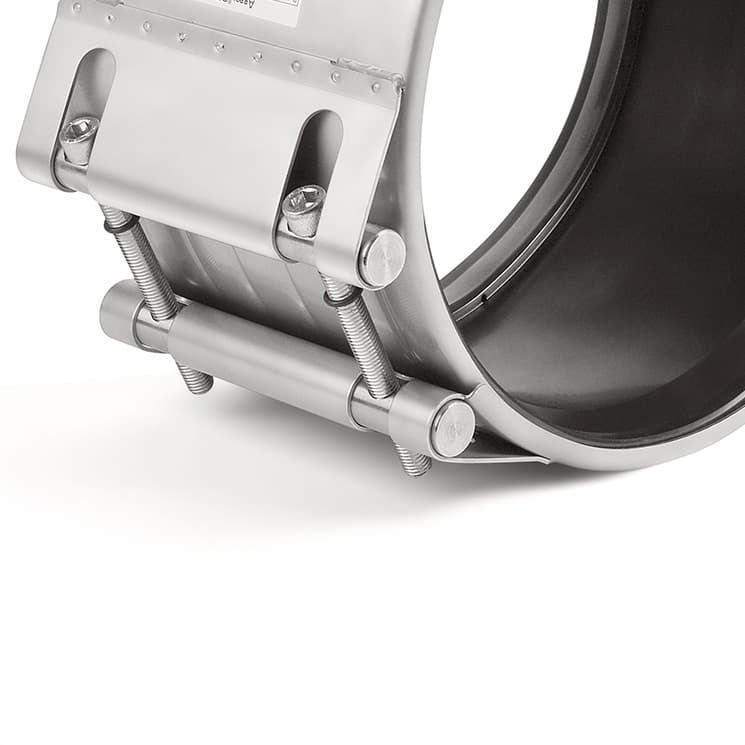

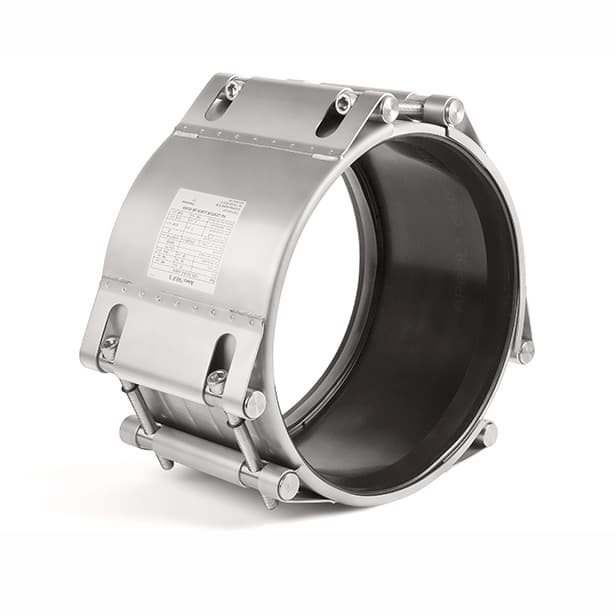

Arpol REP-3 is a flexible coupling designed for pipe repair with a triple locking system, providing increased stability and adaptability in demanding repair situations.
Availabilitymade-to-measure (1 month production time)
Outside Diameter57 – 1368 mm
Pressure6 – 40 bar
Sealing gasketEPDM, NBR, SILICONE
Casing qualityW4, W5
Coupling width75 – 300 mm
Downloads
Pipe materials
Arpol couplings are engineered to connect and repair a diverse range of pipe materials, including:
Steel
Ductile steel
Asbestos concrete
Concrete
GRP
PE
PVC
Materials
W2
Stainless Steel casing AISI 304 L. Geomet coated carbon steel bolts and bars.
W4
Stainless steel casing AISI 304 L. Stainless steel bolts and bars AISI 304.
W5
Stainless steel casing AISI 316 L. Stainless steel bolts and bars AISI 316.
