NEO

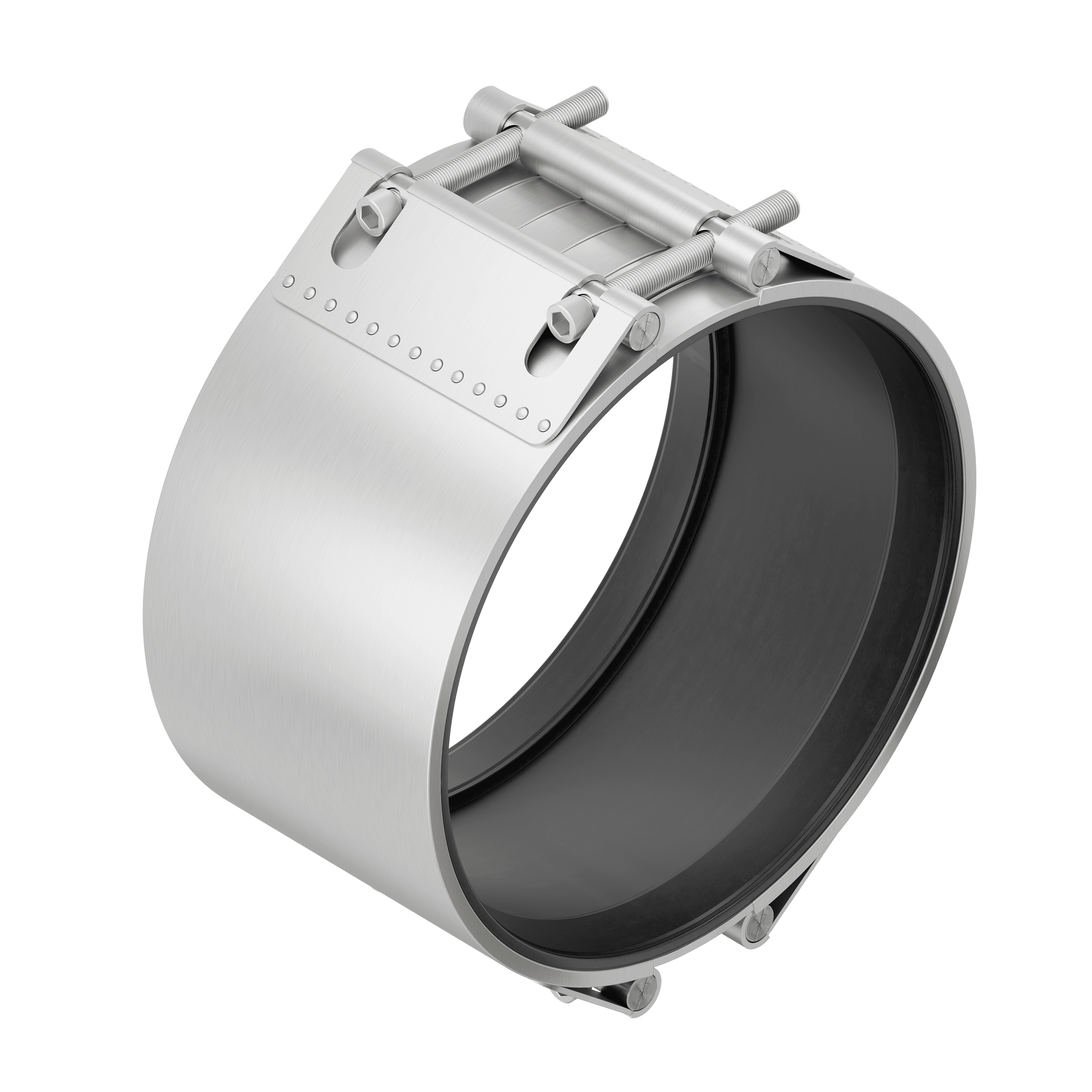

NEO+ 400-425 PN10 L2
Details

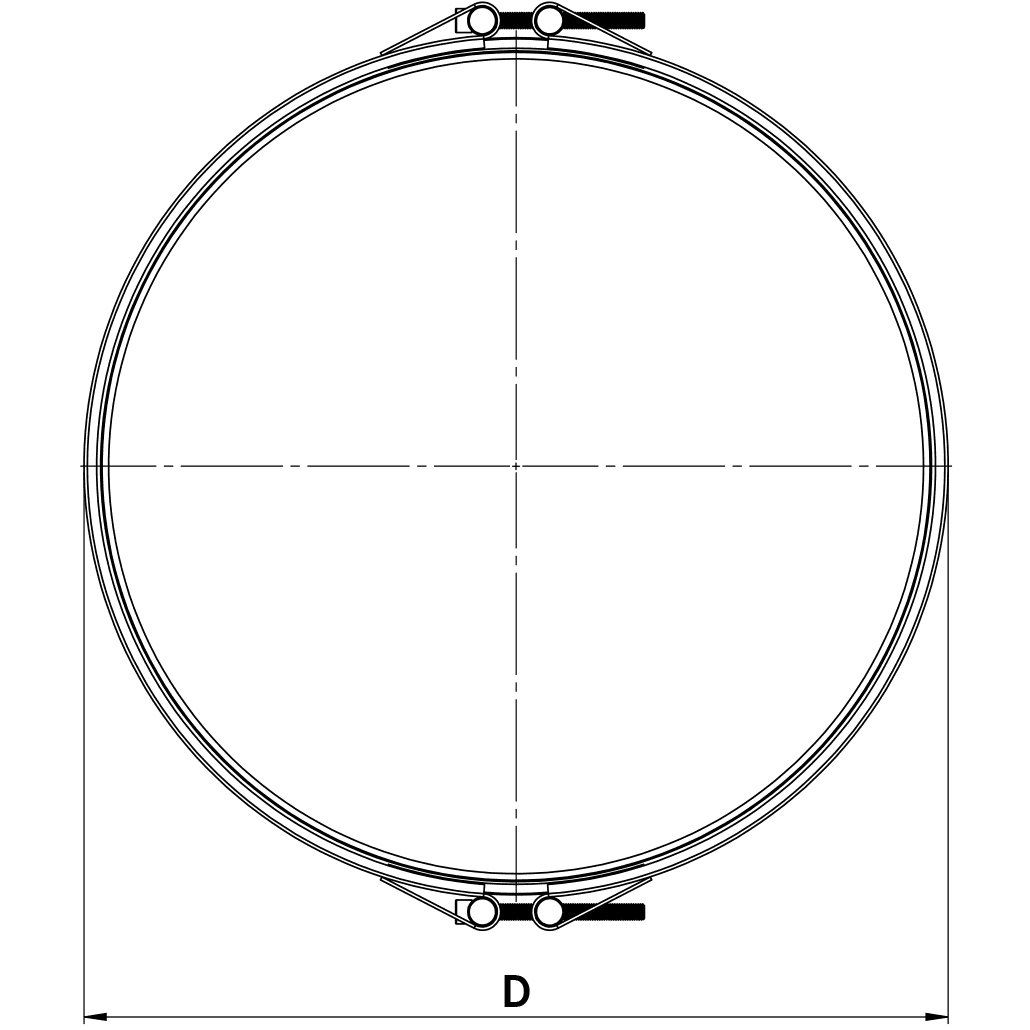

Outside Diameter400–875 mm
Pressure6–20 bar
Length200 mm
Casing qualityW4
Sealing gasketEPDM
| ODmm | Pressurebar | Gasket | Quality | T max°C | Add to basket |
|---|---|---|---|---|---|
| 397–425 | 9 | EPDM | W4 | 100 | |
| 397–425 | 10 | EPDM | W4 | 100 | |
| 397–425 | 19 | EPDM | W4 | 100 | |
| 422–450 | 9 | EPDM | W4 | 100 | |
| 422–450 | 14 | EPDM | W4 | 100 | |
| 422–450 | 18 | EPDM | W4 | 100 | |
| 447–475 | 9 | EPDM | W4 | 100 | |
| 447–475 | 12 | EPDM | W4 | 100 | |
| 447–475 | 17 | EPDM | W4 | 100 | |
| 472–500 | 8 | EPDM | W4 | 100 | |
| 472–500 | 12 | EPDM | W4 | 100 | |
| 472–500 | 20 | EPDM | W4 | 100 | |
| 497–525 | 7 | EPDM | W4 | 100 | |
| 497–525 | 11 | EPDM | W4 | 100 | |
| 497–525 | 19 | EPDM | W4 | 100 | |
| 522–550 | 7 | EPDM | W4 | 100 | |
| 522–550 | 10 | EPDM | W4 | 100 | |
| 547–575 | 7 | EPDM | W4 | 100 | |
| 547–575 | 10 | EPDM | W4 | 100 | |
| 572–600 | 6 | EPDM | W4 | 100 | |
| 572–600 | 12 | EPDM | W4 | 100 | |
| 597–625 | 6 | EPDM | W4 | 100 | |
| 597–625 | 12 | EPDM | W4 | 100 | |
| 622–650 | 6 | EPDM | W4 | 100 | |
| 622–650 | 11 | EPDM | W4 | 100 | |
| 647–675 | 6 | EPDM | W4 | 100 | |
| 647–675 | 10 | EPDM | W4 | 100 | |
| 672–700 | 7 | EPDM | W4 | 100 | |
| 672–700 | 10 | EPDM | W4 | 100 | |
| 697–725 | 7 | EPDM | W4 | 100 | |
| 697–725 | 10 | EPDM | W4 | 100 | |
| 722–750 | 7 | EPDM | W4 | 100 | |
| 747–775 | 6 | EPDM | W4 | 100 | |
| 772–800 | 6 | EPDM | W4 | 100 | |
| 797–825 | 6 | EPDM | W4 | 100 | |
| 822–850 | 6 | EPDM | W4 | 100 | |
| 847–875 | 6 | EPDM | W4 | 100 | |
| 872–900 | 6 | EPDM | W4 | 100 |
