NEO

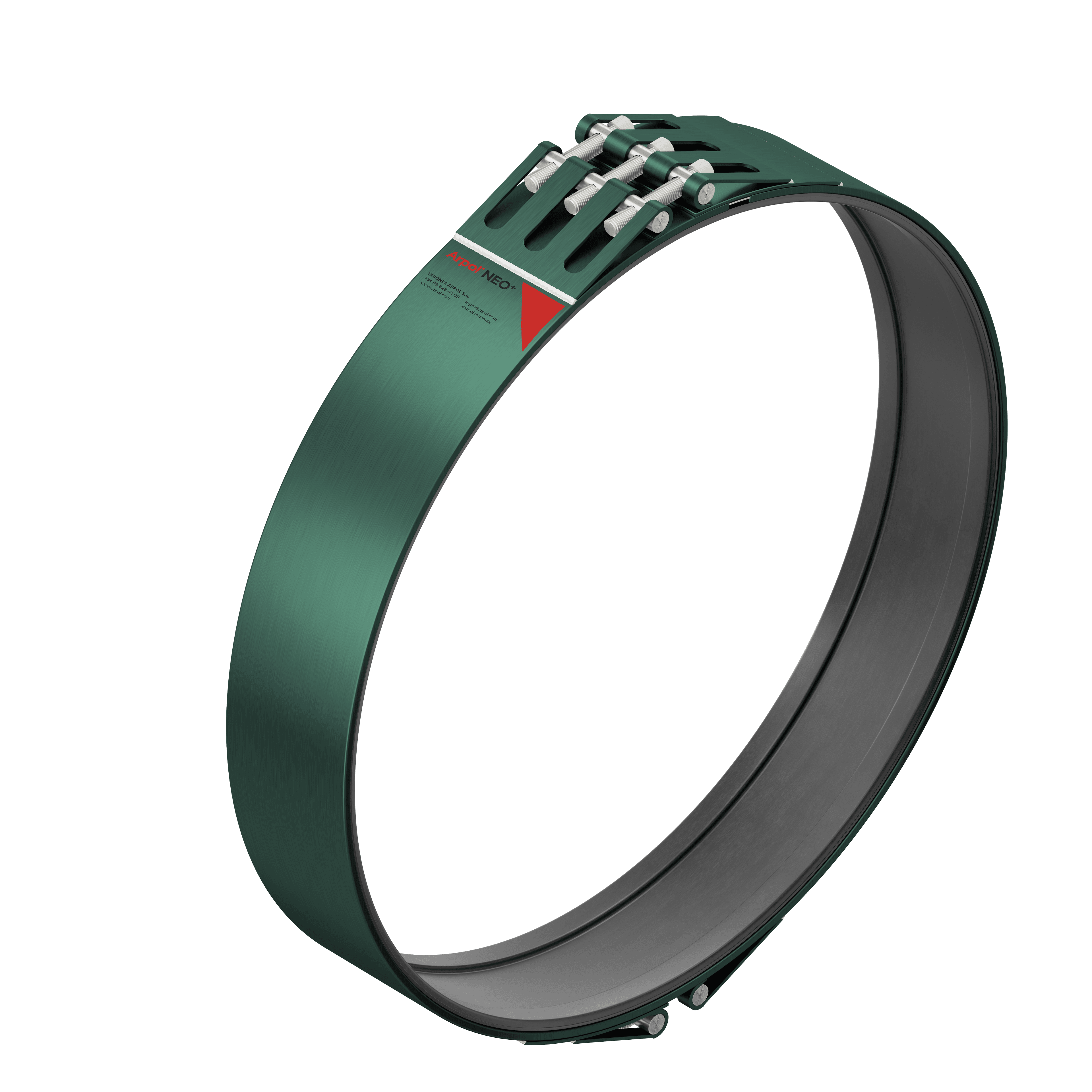

NEO+ 1222-1250 PN10 L2
Details

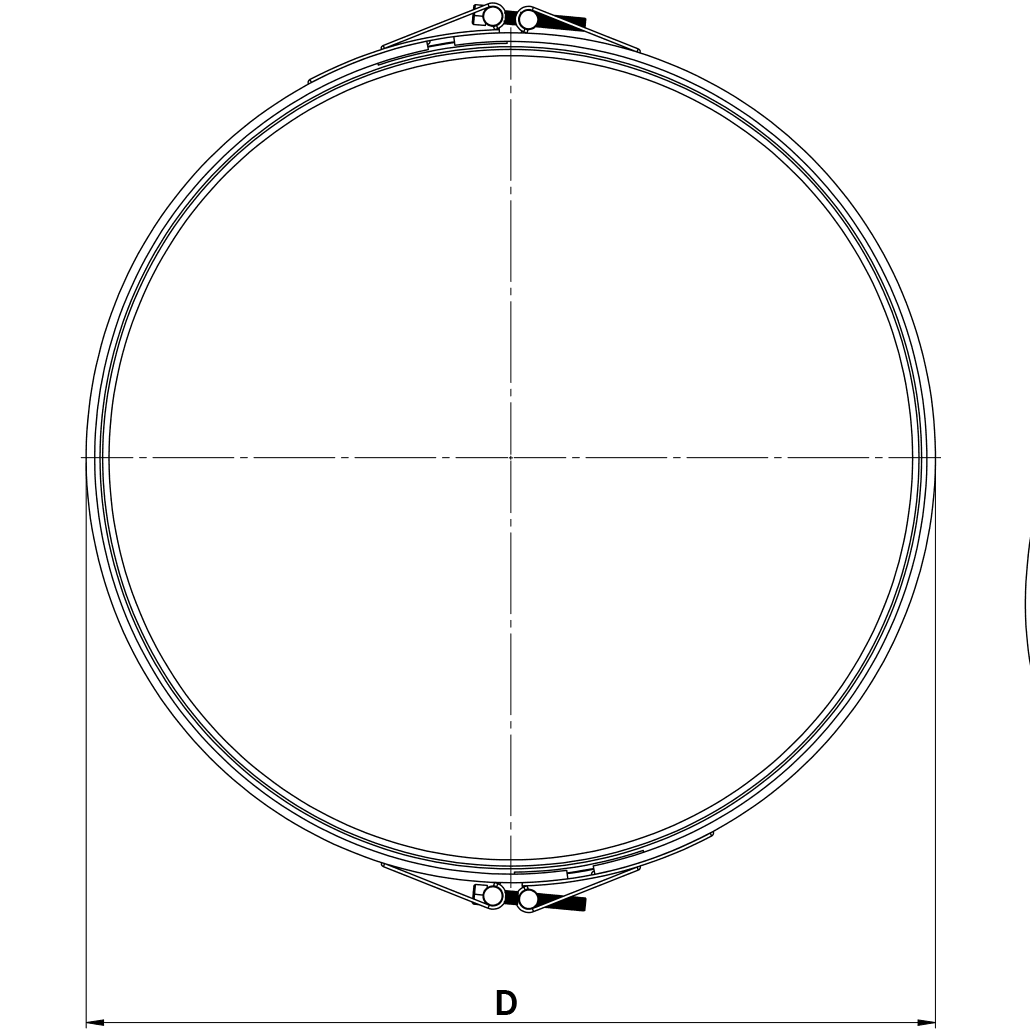

Outside Diameter750–1225 mm
Pressure12–21 bar
Length200 mm
Casing qualityW4
Sealing gasketEPDM
| ODmm | Pressurebar | Gasket | Quality | T max°C | Add to basket |
|---|---|---|---|---|---|
| 747–775 | 21 | EPDM | W4 | 100 | |
| 772–800 | 20 | EPDM | W4 | 100 | |
| 797–825 | 20 | EPDM | W4 | 100 | |
| 822–850 | 19 | EPDM | W4 | 100 | |
| 847–875 | 18 | EPDM | W4 | 100 | |
| 872–900 | 18 | EPDM | W4 | 100 | |
| 897–925 | 17 | EPDM | W4 | 100 | |
| 922–950 | 17 | EPDM | W4 | 100 | |
| 1147–1175 | 12 | EPDM | W4 | 100 | |
| 1172–1200 | 12 | EPDM | W4 | 100 | |
| 1197–1225 | 12 | EPDM | W4 | 100 | |
| 1222–1250 | 12 | EPDM | W4 | 100 |
- OD (mm)
- 747–775
- Pressure (bar)
- 21
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 772–800
- Pressure (bar)
- 20
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 797–825
- Pressure (bar)
- 20
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 822–850
- Pressure (bar)
- 19
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 847–875
- Pressure (bar)
- 18
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 872–900
- Pressure (bar)
- 18
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 897–925
- Pressure (bar)
- 17
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 922–950
- Pressure (bar)
- 17
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 1147–1175
- Pressure (bar)
- 12
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 1172–1200
- Pressure (bar)
- 12
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 1197–1225
- Pressure (bar)
- 12
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
- OD (mm)
- 1222–1250
- Pressure (bar)
- 12
- Gasket
- EPDM
- Quality
- W4
- T max (°C)
- 100
