NEO

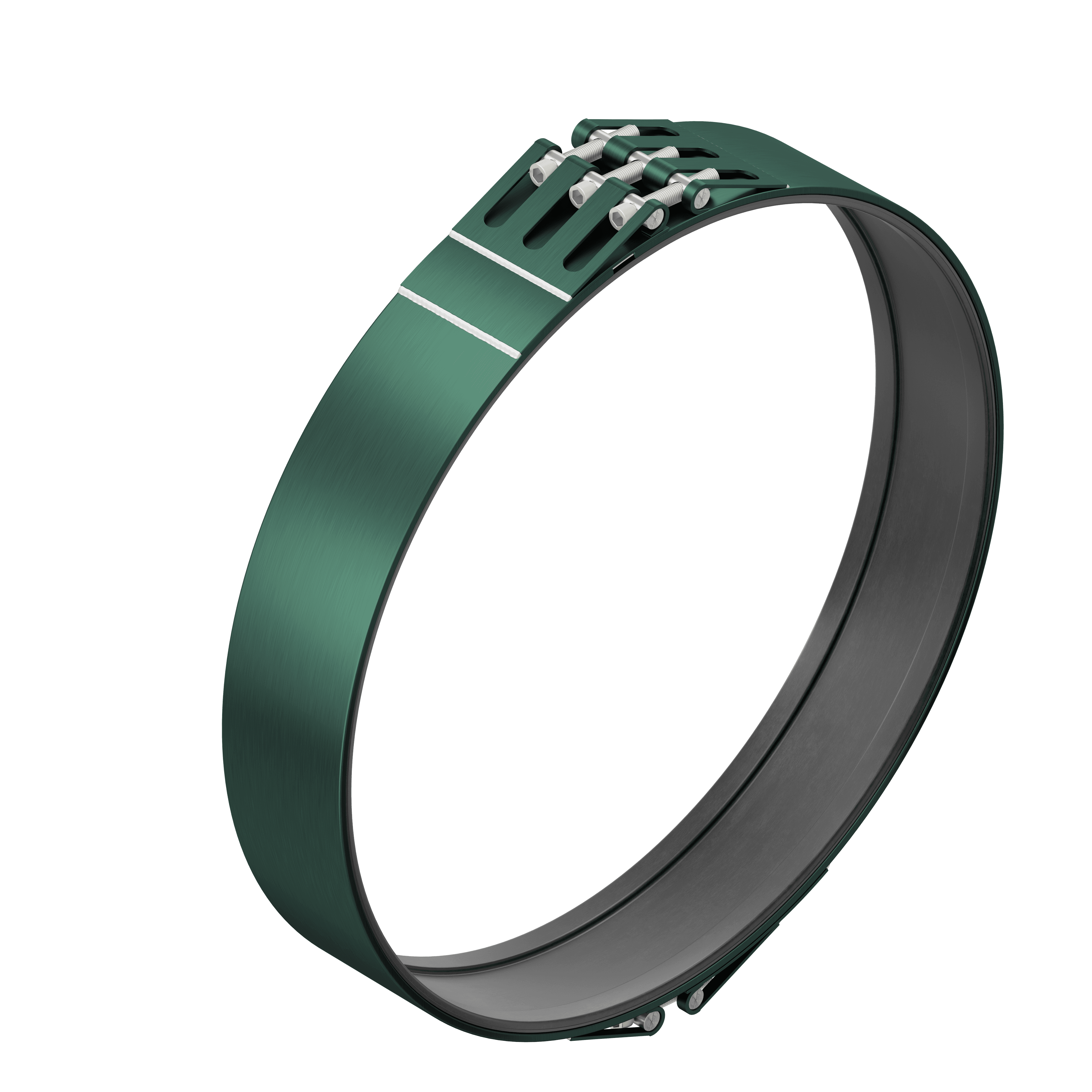

NEO+ 1222-1250 PN10 CO L2
Details

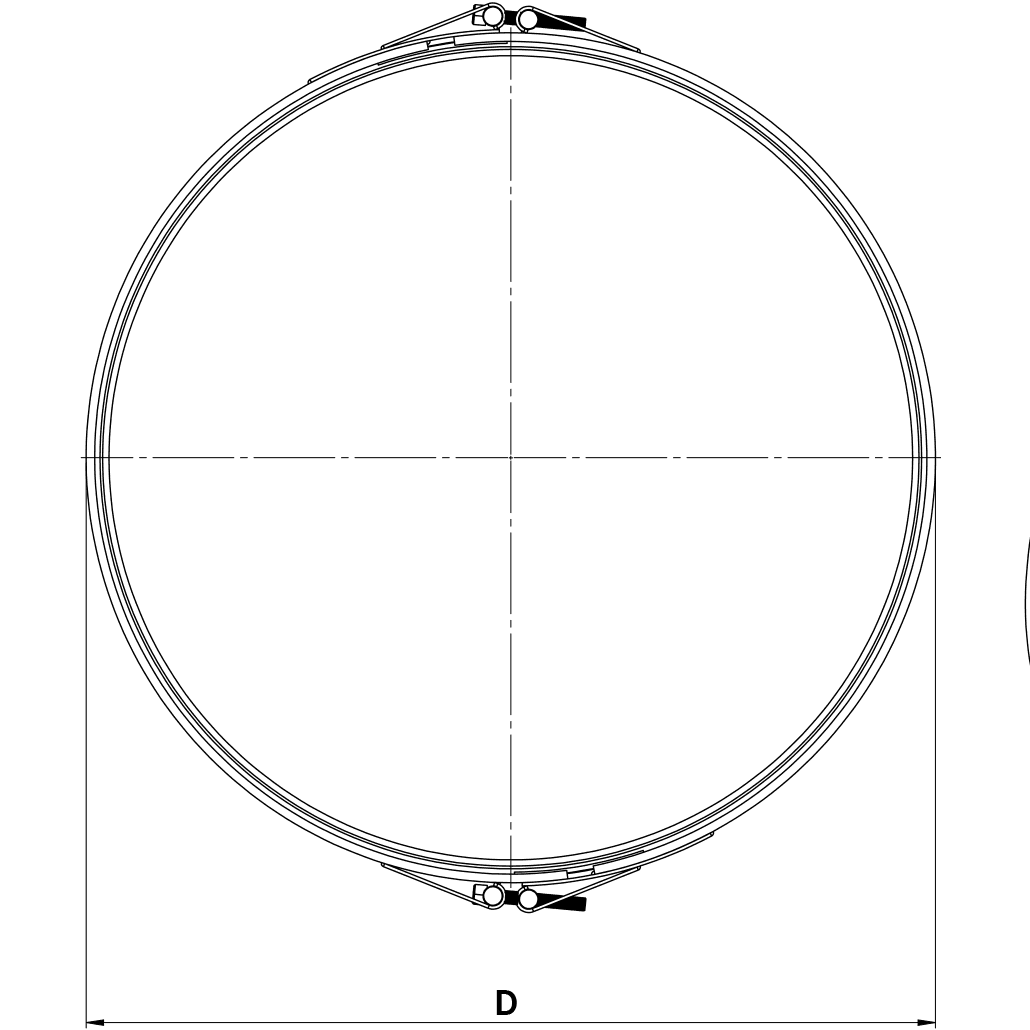

Outside Diameter400–1225 mm
Pressure0–22 bar
Length200 mm
Casing qualityW1/A2
Sealing gasketEPDM
| ODmm | Pressurebar | Gasket | Quality | T max°C | Add to basket |
|---|---|---|---|---|---|
| 397–425 | 0 | EPDM | W1/A2 | 100 | |
| 422–450 | 0 | EPDM | W1/A2 | 100 | |
| 447–475 | 0 | EPDM | W1/A2 | 100 | |
| 472–500 | 0 | EPDM | W1/A2 | 100 | |
| 497–525 | 0 | EPDM | W1/A2 | 100 | |
| 522–550 | 0 | EPDM | W1/A2 | 100 | |
| 547–575 | 0 | EPDM | W1/A2 | 100 | |
| 572–600 | 0 | EPDM | W1/A2 | 100 | |
| 597–625 | 20 | EPDM | W1/A2 | 100 | |
| 622–650 | 20 | EPDM | W1/A2 | 100 | |
| 647–675 | 20 | EPDM | W1/A2 | 100 | |
| 672–700 | 20 | EPDM | W1/A2 | 100 | |
| 697–725 | 20 | EPDM | W1/A2 | 100 | |
| 722–750 | 20 | EPDM | W1/A2 | 100 | |
| 747–775 | 20 | EPDM | W1/A2 | 100 | |
| 772–800 | 20 | EPDM | W1/A2 | 100 | |
| 797–825 | 20 | EPDM | W1/A2 | 100 | |
| 822–850 | 20 | EPDM | W1/A2 | 100 | |
| 847–875 | 20 | EPDM | W1/A2 | 100 | |
| 872–900 | 20 | EPDM | W1/A2 | 100 | |
| 897–925 | 19 | EPDM | W1/A2 | 100 | |
| 922–950 | 18 | EPDM | W1/A2 | 100 | |
| 947–975 | 18 | EPDM | W1/A2 | 100 | |
| 972–1000 | 17 | EPDM | W1/A2 | 100 | |
| 997–1025 | 22 | EPDM | W1/A2 | 100 | |
| 1022–1050 | 21 | EPDM | W1/A2 | 100 | |
| 1047–1075 | 20 | EPDM | W1/A2 | 100 | |
| 1072–1100 | 20 | EPDM | W1/A2 | 100 | |
| 1097–1125 | 19 | EPDM | W1/A2 | 100 | |
| 1122–1150 | 19 | EPDM | W1/A2 | 100 | |
| 1147–1175 | 18 | EPDM | W1/A2 | 100 | |
| 1172–1200 | 18 | EPDM | W1/A2 | 100 | |
| 1197–1225 | 18 | EPDM | W1/A2 | 100 | |
| 1222–1250 | 17 | EPDM | W1/A2 | 100 |
