IGWR 1226-1242 A2E11

Name: IGWR 1226-1242 A2E11
Brand: Arpol

Details

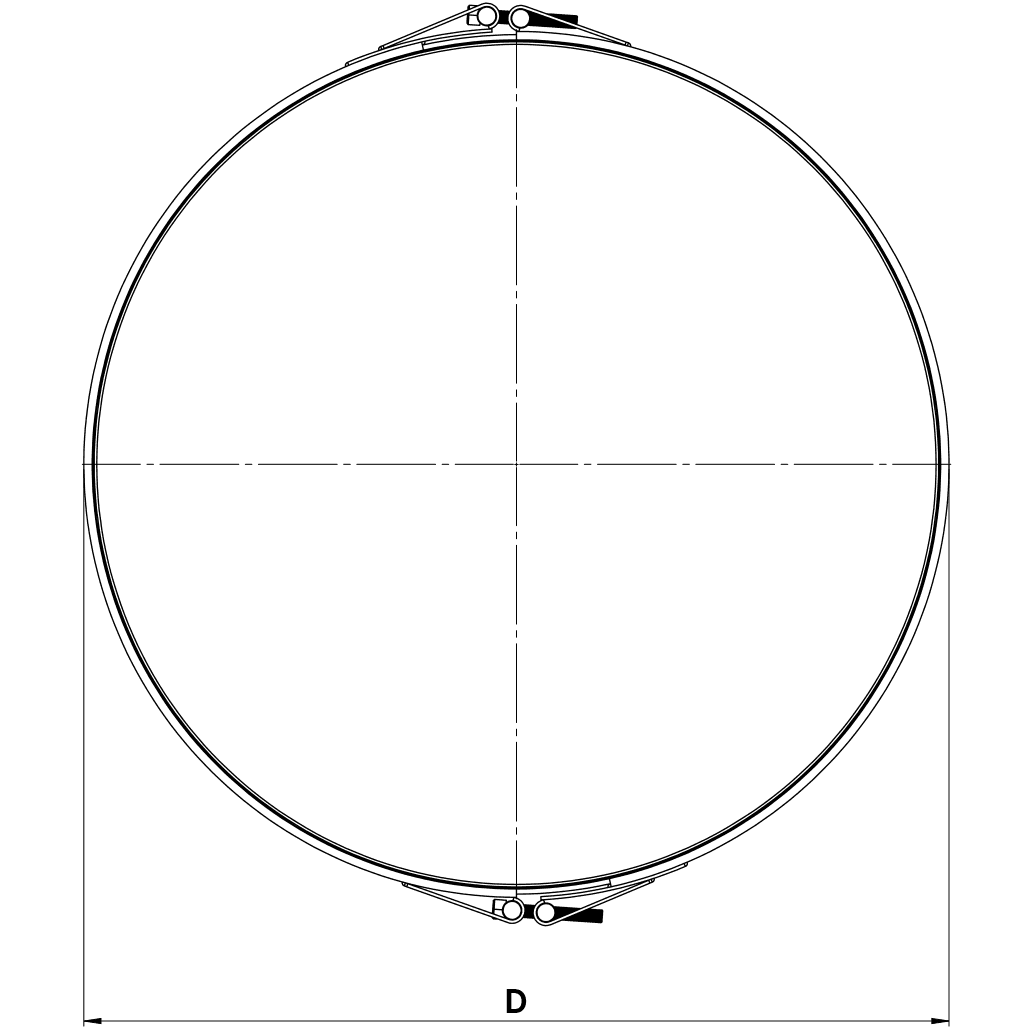

Outside Diameter836–1361 mm

Pressure6–19 bar

Length300 mm

Casing qualityW5, W4

Sealing gasketSILICONE, NBR, EPDM

Ask for quote Configure

Catalogue Installation instructions Fitting instruction

ODmm	Pressurebar	Gasket	Quality	T max°C
835–851	6	EPDM	W4	100
835–851	6	EPDM	W5	100
835–851	6	NBR	W4	80
835–851	6	NBR	W5	80
835–851	6	SILICONE	W4	200
835–851	6	SILICONE	W5	200
835–851	10	EPDM	W4	100
835–851	10	EPDM	W5	100
835–851	10	NBR	W4	80
835–851	10	NBR	W5	80
835–851	10	SILICONE	W4	200
835–851	10	SILICONE	W5	200
835–851	16	EPDM	W4	100
835–851	16	EPDM	W5	100
835–851	16	NBR	W4	80
835–851	16	NBR	W5	80
835–851	16	SILICONE	W4	200
835–851	16	SILICONE	W5	200
851–867	6	EPDM	W4	100
851–867	6	EPDM	W5	100
851–867	6	NBR	W4	80
851–867	6	NBR	W5	80
851–867	6	SILICONE	W4	200
851–867	6	SILICONE	W5	200
851–867	12	EPDM	W4	100
851–867	12	EPDM	W5	100
851–867	12	NBR	W4	80
851–867	12	NBR	W5	80
851–867	12	SILICONE	W4	200
851–867	12	SILICONE	W5	200
877–893	12	EPDM	W4	100
877–893	12	EPDM	W5	100
877–893	12	NBR	W4	80
877–893	12	NBR	W5	80
877–893	12	SILICONE	W4	200
877–893	12	SILICONE	W5	200
880–896	6	EPDM	W4	100
880–896	6	EPDM	W5	100
880–896	6	NBR	W4	80
880–896	6	NBR	W5	80
880–896	6	SILICONE	W4	200
880–896	6	SILICONE	W5	200
880–896	12	EPDM	W4	100
880–896	12	EPDM	W5	100
880–896	12	NBR	W4	80
880–896	12	NBR	W5	80
880–896	12	SILICONE	W4	200
880–896	12	SILICONE	W5	200
896–912	6	EPDM	W4	100
896–912	6	EPDM	W5	100
896–912	6	NBR	W4	80
896–912	6	NBR	W5	80
896–912	6	SILICONE	W4	200
896–912	6	SILICONE	W5	200
896–912	12	EPDM	W4	100
896–912	12	EPDM	W5	100
896–912	12	NBR	W4	80
896–912	12	NBR	W5	80
896–912	12	SILICONE	W4	200
896–912	12	SILICONE	W5	200
900–900	18	EPDM	W4	100
900–900	18	EPDM	W5	100
900–900	18	NBR	W4	80
900–900	18	NBR	W5	80
900–900	18	SILICONE	W4	200
900–900	18	SILICONE	W5	200
908–924	6	EPDM	W4	100
908–924	6	EPDM	W5	100
908–924	6	NBR	W4	80
908–924	6	NBR	W5	80
908–924	6	SILICONE	W4	200
908–924	6	SILICONE	W5	200
908–924	12	EPDM	W4	100
908–924	12	EPDM	W5	100
908–924	12	NBR	W4	80
908–924	12	NBR	W5	80
908–924	12	SILICONE	W4	200
908–924	12	SILICONE	W5	200
914–914	18	EPDM	W4	100
914–914	18	EPDM	W5	100
914–914	18	NBR	W4	80
914–914	18	NBR	W5	80
914–914	18	SILICONE	W4	200
914–914	18	SILICONE	W5	200
921–937	6	EPDM	W4	100
921–937	6	EPDM	W5	100
921–937	6	NBR	W4	80
921–937	6	NBR	W5	80
921–937	6	SILICONE	W4	200
921–937	6	SILICONE	W5	200
921–937	12	EPDM	W4	100
921–937	12	EPDM	W5	100
921–937	12	NBR	W4	80
921–937	12	NBR	W5	80
921–937	12	SILICONE	W4	200
921–937	12	SILICONE	W5	200
924–924	18	EPDM	W4	100
924–924	18	EPDM	W5	100
924–924	18	NBR	W4	80
924–924	18	NBR	W5	80
924–924	18	SILICONE	W4	200
924–924	18	SILICONE	W5	200
938–954	6	EPDM	W4	100
938–954	6	EPDM	W5	100
938–954	6	NBR	W4	80
938–954	6	NBR	W5	80
938–954	6	SILICONE	W4	200
938–954	6	SILICONE	W5	200
938–954	12	EPDM	W4	100
938–954	12	EPDM	W5	100
938–954	12	NBR	W4	80
938–954	12	NBR	W5	80
938–954	12	SILICONE	W4	200
938–954	12	SILICONE	W5	200
945–945	18	EPDM	W4	100
945–945	18	EPDM	W5	100
945–945	18	NBR	W4	80
945–945	18	NBR	W5	80
945–945	18	SILICONE	W4	200
945–945	18	SILICONE	W5	200
957–973	11	EPDM	W4	100
957–973	11	EPDM	W5	100
957–973	11	NBR	W4	80
957–973	11	NBR	W5	80
957–973	11	SILICONE	W4	200
957–973	11	SILICONE	W5	200
976–992	8	EPDM	W4	100
976–992	8	EPDM	W5	100
976–992	8	NBR	W4	80
976–992	8	NBR	W5	80
976–992	8	SILICONE	W4	200
976–992	8	SILICONE	W5	200
1000–1000	16	EPDM	W4	100
1000–1000	16	EPDM	W5	100
1000–1000	16	NBR	W4	80
1000–1000	16	NBR	W5	80
1000–1000	16	SILICONE	W4	200
1000–1000	16	SILICONE	W5	200
1010–1026	8	EPDM	W4	100
1010–1026	8	EPDM	W5	100
1010–1026	8	NBR	W4	80
1010–1026	8	NBR	W5	80
1010–1026	8	SILICONE	W4	200
1010–1026	8	SILICONE	W5	200
1010–1026	10	EPDM	W4	100
1010–1026	10	EPDM	W5	100
1010–1026	10	NBR	W4	80
1010–1026	10	NBR	W5	80
1010–1026	10	SILICONE	W4	200
1010–1026	10	SILICONE	W5	200
1016–1016	16	EPDM	W4	100
1016–1016	16	EPDM	W5	100
1016–1016	16	NBR	W4	80
1016–1016	16	NBR	W5	80
1016–1016	16	SILICONE	W4	200
1016–1016	16	SILICONE	W5	200
1023–1039	8	EPDM	W4	100
1023–1039	8	EPDM	W5	100
1023–1039	8	NBR	W4	80
1023–1039	8	NBR	W5	80
1023–1039	8	SILICONE	W4	200
1023–1039	8	SILICONE	W5	200
1023–1039	10	EPDM	W4	100
1023–1039	10	EPDM	W5	100
1023–1039	10	NBR	W4	80
1023–1039	10	NBR	W5	80
1023–1039	10	SILICONE	W4	200
1023–1039	10	SILICONE	W5	200
1026–1026	16	EPDM	W4	100
1026–1026	16	EPDM	W5	100
1026–1026	16	NBR	W4	80
1026–1026	16	NBR	W5	80
1026–1026	16	SILICONE	W4	200
1026–1026	16	SILICONE	W5	200
1042–1058	8	EPDM	W4	100
1042–1058	8	EPDM	W5	100
1042–1058	8	NBR	W4	80
1042–1058	8	NBR	W5	80
1042–1058	8	SILICONE	W4	200
1042–1058	8	SILICONE	W5	200
1042–1058	10	EPDM	W4	100
1042–1058	10	EPDM	W5	100
1042–1058	10	NBR	W4	80
1042–1058	10	NBR	W5	80
1042–1058	10	SILICONE	W4	200
1042–1058	10	SILICONE	W5	200
1048–1048	16	EPDM	W4	100
1048–1048	16	EPDM	W5	100
1048–1048	16	NBR	W4	80
1048–1048	16	NBR	W5	80
1048–1048	16	SILICONE	W4	200
1048–1048	16	SILICONE	W5	200
1055–1071	10	EPDM	W4	100
1055–1071	10	EPDM	W5	100
1055–1071	10	NBR	W4	80
1055–1071	10	NBR	W5	80
1055–1071	10	SILICONE	W4	200
1055–1071	10	SILICONE	W5	200
1097–1113	7	EPDM	W4	100
1097–1113	7	EPDM	W5	100
1097–1113	7	NBR	W4	80
1097–1113	7	NBR	W5	80
1097–1113	7	SILICONE	W4	200
1097–1113	7	SILICONE	W5	200
1097–1113	10	EPDM	W4	100
1097–1113	10	EPDM	W5	100
1097–1113	10	NBR	W4	80
1097–1113	10	NBR	W5	80
1097–1113	10	SILICONE	W4	200
1097–1113	10	SILICONE	W5	200
1112–1128	7	EPDM	W4	100
1112–1128	7	EPDM	W5	100
1112–1128	7	NBR	W4	80
1112–1128	7	NBR	W5	80
1112–1128	7	SILICONE	W4	200
1112–1128	7	SILICONE	W5	200
1112–1128	12	EPDM	W4	100
1112–1128	12	EPDM	W5	100
1112–1128	12	NBR	W4	80
1112–1128	12	NBR	W5	80
1112–1128	12	SILICONE	W4	200
1112–1128	12	SILICONE	W5	200
1118–1118	19	EPDM	W4	100
1118–1118	19	EPDM	W5	100
1118–1118	19	NBR	W4	80
1118–1118	19	NBR	W5	80
1118–1118	19	SILICONE	W4	200
1118–1118	19	SILICONE	W5	200
1124–1140	7	EPDM	W4	100
1124–1140	7	EPDM	W5	100
1124–1140	7	NBR	W4	80
1124–1140	7	NBR	W5	80
1124–1140	7	SILICONE	W4	200
1124–1140	7	SILICONE	W5	200
1124–1140	12	EPDM	W4	100
1124–1140	12	EPDM	W5	100
1124–1140	12	NBR	W4	80
1124–1140	12	NBR	W5	80
1124–1140	12	SILICONE	W4	200
1124–1140	12	SILICONE	W5	200
1154–1154	18	EPDM	W4	100
1154–1154	18	EPDM	W5	100
1154–1154	18	NBR	W4	80
1154–1154	18	NBR	W5	80
1154–1154	18	SILICONE	W4	200
1154–1154	18	SILICONE	W5	200
1193–1209	7	EPDM	W4	100
1193–1209	7	EPDM	W5	100
1193–1209	7	NBR	W4	80
1193–1209	7	NBR	W5	80
1193–1209	7	SILICONE	W4	200
1193–1209	7	SILICONE	W5	200
1193–1209	11	EPDM	W4	100
1193–1209	11	EPDM	W5	100
1193–1209	11	NBR	W4	80
1193–1209	11	NBR	W5	80
1193–1209	11	SILICONE	W4	200
1193–1209	11	SILICONE	W5	200
1200–1200	17	EPDM	W4	100
1200–1200	17	EPDM	W5	100
1200–1200	17	NBR	W4	80
1200–1200	17	NBR	W5	80
1200–1200	17	SILICONE	W4	200
1200–1200	17	SILICONE	W5	200
1208–1224	7	EPDM	W4	100
1208–1224	7	EPDM	W5	100
1208–1224	7	NBR	W4	80
1208–1224	7	NBR	W5	80
1208–1224	7	SILICONE	W4	200
1208–1224	7	SILICONE	W5	200
1208–1224	11	EPDM	W4	100
1208–1224	11	EPDM	W5	100
1208–1224	11	NBR	W4	80
1208–1224	11	NBR	W5	80
1208–1224	11	SILICONE	W4	200
1208–1224	11	SILICONE	W5	200
1219–1219	17	EPDM	W4	100
1219–1219	17	EPDM	W5	100
1219–1219	17	NBR	W4	80
1219–1219	17	NBR	W5	80
1219–1219	17	SILICONE	W4	200
1219–1219	17	SILICONE	W5	200
1220–1236	7	EPDM	W4	100
1220–1236	7	EPDM	W5	100
1220–1236	7	NBR	W4	80
1220–1236	7	NBR	W5	80
1220–1236	7	SILICONE	W4	200
1220–1236	7	SILICONE	W5	200
1220–1236	11	EPDM	W4	100
1220–1236	11	EPDM	W5	100
1220–1236	11	NBR	W4	80
1220–1236	11	NBR	W5	80
1220–1236	11	SILICONE	W4	200
1220–1236	11	SILICONE	W5	200
1229–1229	17	EPDM	W4	100
1229–1229	17	EPDM	W5	100
1229–1229	17	NBR	W4	80
1229–1229	17	NBR	W5	80
1229–1229	17	SILICONE	W4	200
1229–1229	17	SILICONE	W5	200
1241–1257	11	EPDM	W4	100
1241–1257	11	EPDM	W5	100
1241–1257	11	NBR	W4	80
1241–1257	11	NBR	W5	80
1241–1257	11	SILICONE	W4	200
1241–1257	11	SILICONE	W5	200
1249–1265	7	EPDM	W4	100
1249–1265	7	EPDM	W5	100
1249–1265	7	NBR	W4	80
1249–1265	7	NBR	W5	80
1249–1265	7	SILICONE	W4	200
1249–1265	7	SILICONE	W5	200
1249–1265	11	EPDM	W4	100
1249–1265	11	EPDM	W5	100
1249–1265	11	NBR	W4	80
1249–1265	11	NBR	W5	80
1249–1265	11	SILICONE	W4	200
1249–1265	11	SILICONE	W5	200
1255–1255	17	EPDM	W4	100
1255–1255	17	EPDM	W5	100
1255–1255	17	NBR	W4	80
1255–1255	17	NBR	W5	80
1255–1255	17	SILICONE	W4	200
1255–1255	17	SILICONE	W5	200
1352–1368	10	EPDM	W4	100
1352–1368	10	EPDM	W5	100
1352–1368	10	NBR	W4	80
1352–1368	10	NBR	W5	80
1352–1368	10	SILICONE	W4	200
1352–1368	10	SILICONE	W5	200

OD (mm)
835–851
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
835–851
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
835–851
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
835–851
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
835–851
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
835–851
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
835–851
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
835–851
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
835–851
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
835–851
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
835–851
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
835–851
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
835–851
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
835–851
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
835–851
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
835–851
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
835–851
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
835–851
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
851–867
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
851–867
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
851–867
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
851–867
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
851–867
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
851–867
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
851–867
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
851–867
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
851–867
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
851–867
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
851–867
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
851–867
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
877–893
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
877–893
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
877–893
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
877–893
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
877–893
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
877–893
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
880–896
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
880–896
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
880–896
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
880–896
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
880–896
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
880–896
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
880–896
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
880–896
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
880–896
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
880–896
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
880–896
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
880–896
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
896–912
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
896–912
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
896–912
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
896–912
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
896–912
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
896–912
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
896–912
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
896–912
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
896–912
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
896–912
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
896–912
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
896–912
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
900–900
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
900–900
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
900–900
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
900–900
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
900–900
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
900–900
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
908–924
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
908–924
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
908–924
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
908–924
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
908–924
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
908–924
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
908–924
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
908–924
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
908–924
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
908–924
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
908–924
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
908–924
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
914–914
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
914–914
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
914–914
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
914–914
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
914–914
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
914–914
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
921–937
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
921–937
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
921–937
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
921–937
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
921–937
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
921–937
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
921–937
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
921–937
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
921–937
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
921–937
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
921–937
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
921–937
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
924–924
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
924–924
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
924–924
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
924–924
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
924–924
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
924–924
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
938–954
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
938–954
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
938–954
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
938–954
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
938–954
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
938–954
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
938–954
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
938–954
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
938–954
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
938–954
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
938–954
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
938–954
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
945–945
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
945–945
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
945–945
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
945–945
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
945–945
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
945–945
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
957–973
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
957–973
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
957–973
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
957–973
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
957–973
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
957–973
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
976–992
Pressure (bar)
8
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
976–992
Pressure (bar)
8
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
976–992
Pressure (bar)
8
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
976–992
Pressure (bar)
8
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
976–992
Pressure (bar)
8
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
976–992
Pressure (bar)
8
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1000–1000
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1010–1026
Pressure (bar)
8
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1010–1026
Pressure (bar)
8
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1010–1026
Pressure (bar)
8
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1010–1026
Pressure (bar)
8
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1010–1026
Pressure (bar)
8
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1010–1026
Pressure (bar)
8
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1010–1026
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1010–1026
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1010–1026
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1010–1026
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1010–1026
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1010–1026
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1016–1016
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1023–1039
Pressure (bar)
8
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1023–1039
Pressure (bar)
8
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1023–1039
Pressure (bar)
8
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1023–1039
Pressure (bar)
8
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1023–1039
Pressure (bar)
8
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1023–1039
Pressure (bar)
8
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1023–1039
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1023–1039
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1023–1039
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1023–1039
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1023–1039
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1023–1039
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1026–1026
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1042–1058
Pressure (bar)
8
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1042–1058
Pressure (bar)
8
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1042–1058
Pressure (bar)
8
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1042–1058
Pressure (bar)
8
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1042–1058
Pressure (bar)
8
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1042–1058
Pressure (bar)
8
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1042–1058
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1042–1058
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1042–1058
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1042–1058
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1042–1058
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1042–1058
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1048–1048
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1055–1071
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1055–1071
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1055–1071
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1055–1071
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1055–1071
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1055–1071
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1097–1113
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1097–1113
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1097–1113
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1097–1113
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1097–1113
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1097–1113
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1097–1113
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1097–1113
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1097–1113
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1097–1113
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1097–1113
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1097–1113
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1112–1128
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1112–1128
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1112–1128
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1112–1128
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1112–1128
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1112–1128
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1112–1128
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1112–1128
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1112–1128
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1112–1128
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1112–1128
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1112–1128
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1118–1118
Pressure (bar)
19
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1118–1118
Pressure (bar)
19
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1118–1118
Pressure (bar)
19
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1118–1118
Pressure (bar)
19
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1118–1118
Pressure (bar)
19
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1118–1118
Pressure (bar)
19
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1124–1140
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1124–1140
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1124–1140
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1124–1140
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1124–1140
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1124–1140
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1124–1140
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1124–1140
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1124–1140
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1124–1140
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1124–1140
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1124–1140
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1154–1154
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1154–1154
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1154–1154
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1154–1154
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1154–1154
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1154–1154
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1193–1209
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1193–1209
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1193–1209
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1193–1209
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1193–1209
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1193–1209
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1193–1209
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1193–1209
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1193–1209
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1193–1209
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1193–1209
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1193–1209
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1200–1200
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1200–1200
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1200–1200
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1200–1200
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1200–1200
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1200–1200
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1208–1224
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1208–1224
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1208–1224
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1208–1224
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1208–1224
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1208–1224
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1208–1224
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1208–1224
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1208–1224
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1208–1224
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1208–1224
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1208–1224
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1219–1219
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1219–1219
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1219–1219
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1219–1219
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1219–1219
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1219–1219
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1220–1236
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1220–1236
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1220–1236
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1220–1236
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1220–1236
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1220–1236
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1220–1236
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1220–1236
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1220–1236
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1220–1236
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1220–1236
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1220–1236
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1229–1229
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1229–1229
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1229–1229
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1229–1229
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1229–1229
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1229–1229
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1241–1257
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1241–1257
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1241–1257
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1241–1257
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1241–1257
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1241–1257
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1249–1265
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1249–1265
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1249–1265
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1249–1265
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1249–1265
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1249–1265
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1249–1265
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1249–1265
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1249–1265
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1249–1265
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1249–1265
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1249–1265
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1255–1255
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1255–1255
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1255–1255
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1255–1255
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1255–1255
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1255–1255
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
1352–1368
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
1352–1368
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
1352–1368
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
1352–1368
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
1352–1368
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
1352–1368
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200

IGWR 1226-1242 A2E11

Details

Downloads
