IDZR 614-630 A2E11

Name: IDZR 614-630 A2E11
Brand: Arpol

Details

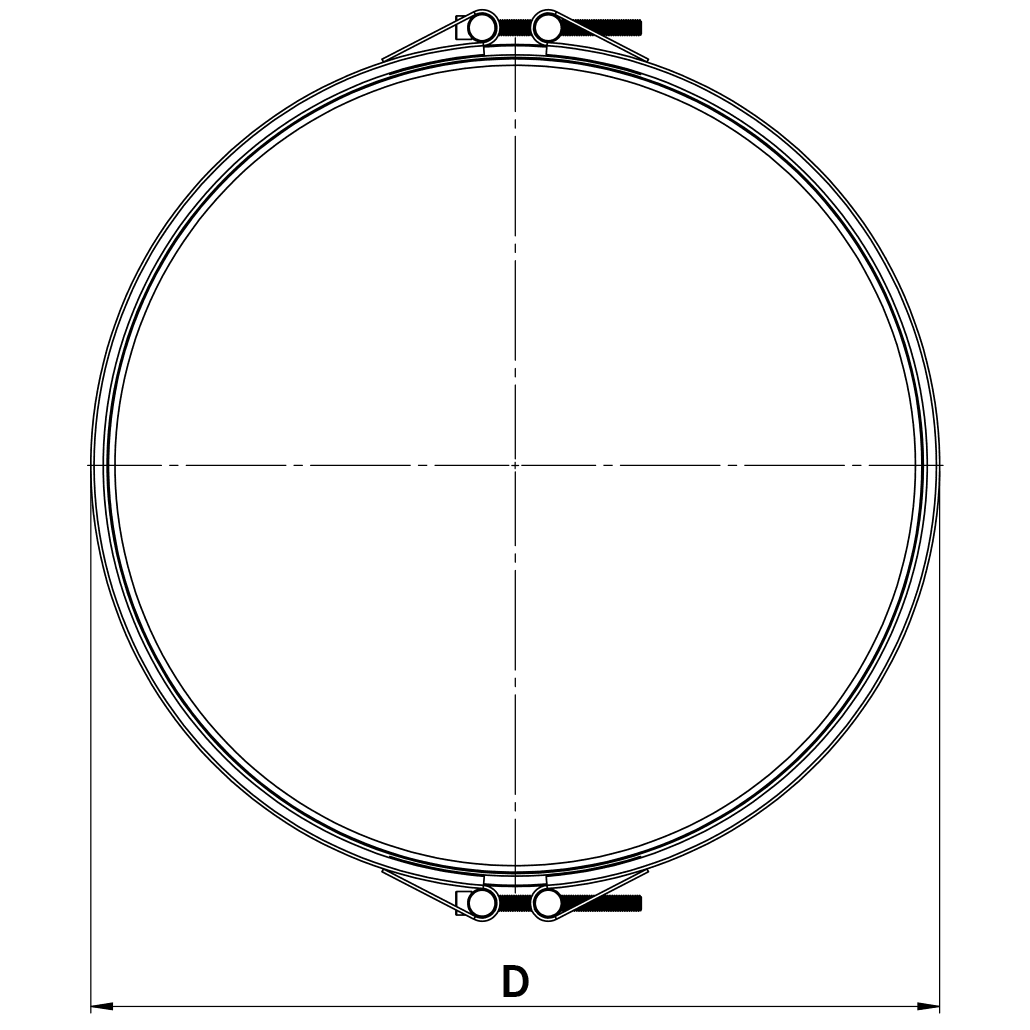

Outside Diameter495–821 mm

Pressure6–20 bar

Length200 mm

Casing qualityW5, W4

Sealing gasketSILICONE, NBR, EPDM

Ask for quote Configure

Catalogue Installation instructions Fitting instruction

ODmm	Pressurebar	Gasket	Quality	T max°C
493–509	8	EPDM	W4	100
493–509	8	EPDM	W5	100
493–509	8	NBR	W4	80
493–509	8	NBR	W5	80
493–509	8	SILICONE	W4	200
493–509	8	SILICONE	W5	200
493–509	11	EPDM	W4	100
493–509	11	EPDM	W5	100
493–509	11	NBR	W4	80
493–509	11	NBR	W5	80
493–509	11	SILICONE	W4	200
493–509	11	SILICONE	W5	200
493–509	17	EPDM	W4	100
493–509	17	EPDM	W5	100
493–509	17	NBR	W4	80
493–509	17	NBR	W5	80
493–509	17	SILICONE	W4	200
493–509	17	SILICONE	W5	200
504–520	8	EPDM	W4	100
504–520	8	EPDM	W5	100
504–520	8	NBR	W4	80
504–520	8	NBR	W5	80
504–520	8	SILICONE	W4	200
504–520	8	SILICONE	W5	200
504–520	10	EPDM	W4	100
504–520	10	EPDM	W5	100
504–520	10	NBR	W4	80
504–520	10	NBR	W5	80
504–520	10	SILICONE	W4	200
504–520	10	SILICONE	W5	200
504–520	20	EPDM	W4	100
504–520	20	EPDM	W5	100
504–520	20	NBR	W4	80
504–520	20	NBR	W5	80
504–520	20	SILICONE	W4	200
504–520	20	SILICONE	W5	200
525–541	8	EPDM	W4	100
525–541	8	EPDM	W5	100
525–541	8	NBR	W4	80
525–541	8	NBR	W5	80
525–541	8	SILICONE	W4	200
525–541	8	SILICONE	W5	200
525–541	10	EPDM	W4	100
525–541	10	EPDM	W5	100
525–541	10	NBR	W4	80
525–541	10	NBR	W5	80
525–541	10	SILICONE	W4	200
525–541	10	SILICONE	W5	200
525–541	20	EPDM	W4	100
525–541	20	EPDM	W5	100
525–541	20	NBR	W4	80
525–541	20	NBR	W5	80
525–541	20	SILICONE	W4	200
525–541	20	SILICONE	W5	200
539–555	8	EPDM	W4	100
539–555	8	EPDM	W5	100
539–555	8	NBR	W4	80
539–555	8	NBR	W5	80
539–555	8	SILICONE	W4	200
539–555	8	SILICONE	W5	200
539–555	10	EPDM	W4	100
539–555	10	EPDM	W5	100
539–555	10	NBR	W4	80
539–555	10	NBR	W5	80
539–555	10	SILICONE	W4	200
539–555	10	SILICONE	W5	200
539–555	20	EPDM	W4	100
539–555	20	EPDM	W5	100
539–555	20	NBR	W4	80
539–555	20	NBR	W5	80
539–555	20	SILICONE	W4	200
539–555	20	SILICONE	W5	200
548–564	8	EPDM	W4	100
548–564	8	EPDM	W5	100
548–564	8	NBR	W4	80
548–564	8	NBR	W5	80
548–564	8	SILICONE	W4	200
548–564	8	SILICONE	W5	200
548–564	10	EPDM	W4	100
548–564	10	EPDM	W5	100
548–564	10	NBR	W4	80
548–564	10	NBR	W5	80
548–564	10	SILICONE	W4	200
548–564	10	SILICONE	W5	200
548–564	20	EPDM	W4	100
548–564	20	EPDM	W5	100
548–564	20	NBR	W4	80
548–564	20	NBR	W5	80
548–564	20	SILICONE	W4	200
548–564	20	SILICONE	W5	200
562–578	7	EPDM	W4	100
562–578	7	EPDM	W5	100
562–578	7	NBR	W4	80
562–578	7	NBR	W5	80
562–578	7	SILICONE	W4	200
562–578	7	SILICONE	W5	200
562–578	12	EPDM	W4	100
562–578	12	EPDM	W5	100
562–578	12	NBR	W4	80
562–578	12	NBR	W5	80
562–578	12	SILICONE	W4	200
562–578	12	SILICONE	W5	200
562–578	19	EPDM	W4	100
562–578	19	EPDM	W5	100
562–578	19	NBR	W4	80
562–578	19	NBR	W5	80
562–578	19	SILICONE	W4	200
562–578	19	SILICONE	W5	200
574–590	19	EPDM	W4	100
574–590	19	EPDM	W5	100
574–590	19	NBR	W4	80
574–590	19	NBR	W5	80
574–590	19	SILICONE	W4	200
574–590	19	SILICONE	W5	200
583–599	7	EPDM	W4	100
583–599	7	EPDM	W5	100
583–599	7	NBR	W4	80
583–599	7	NBR	W5	80
583–599	7	SILICONE	W4	200
583–599	7	SILICONE	W5	200
583–599	12	EPDM	W4	100
583–599	12	EPDM	W5	100
583–599	12	NBR	W4	80
583–599	12	NBR	W5	80
583–599	12	SILICONE	W4	200
583–599	12	SILICONE	W5	200
583–599	19	EPDM	W4	100
583–599	19	EPDM	W5	100
583–599	19	NBR	W4	80
583–599	19	NBR	W5	80
583–599	19	SILICONE	W4	200
583–599	19	SILICONE	W5	200
599–615	7	EPDM	W4	100
599–615	7	EPDM	W5	100
599–615	7	NBR	W4	80
599–615	7	NBR	W5	80
599–615	7	SILICONE	W4	200
599–615	7	SILICONE	W5	200
599–615	12	EPDM	W4	100
599–615	12	EPDM	W5	100
599–615	12	NBR	W4	80
599–615	12	NBR	W5	80
599–615	12	SILICONE	W4	200
599–615	12	SILICONE	W5	200
599–615	19	EPDM	W4	100
599–615	19	EPDM	W5	100
599–615	19	NBR	W4	80
599–615	19	NBR	W5	80
599–615	19	SILICONE	W4	200
599–615	19	SILICONE	W5	200
614–630	6	EPDM	W4	100
614–630	6	EPDM	W5	100
614–630	6	NBR	W4	80
614–630	6	NBR	W5	80
614–630	6	SILICONE	W4	200
614–630	6	SILICONE	W5	200
614–630	11	EPDM	W4	100
614–630	11	EPDM	W5	100
614–630	11	NBR	W4	80
614–630	11	NBR	W5	80
614–630	11	SILICONE	W4	200
614–630	11	SILICONE	W5	200
614–630	17	EPDM	W4	100
614–630	17	EPDM	W5	100
614–630	17	NBR	W4	80
614–630	17	NBR	W5	80
614–630	17	SILICONE	W4	200
614–630	17	SILICONE	W5	200
630–646	6	EPDM	W4	100
630–646	6	EPDM	W5	100
630–646	6	NBR	W4	80
630–646	6	NBR	W5	80
630–646	6	SILICONE	W4	200
630–646	6	SILICONE	W5	200
630–646	11	EPDM	W4	100
630–646	11	EPDM	W5	100
630–646	11	NBR	W4	80
630–646	11	NBR	W5	80
630–646	11	SILICONE	W4	200
630–646	11	SILICONE	W5	200
630–646	17	EPDM	W4	100
630–646	17	EPDM	W5	100
630–646	17	NBR	W4	80
630–646	17	NBR	W5	80
630–646	17	SILICONE	W4	200
630–646	17	SILICONE	W5	200
650–666	6	EPDM	W4	100
650–666	6	EPDM	W5	100
650–666	6	NBR	W4	80
650–666	6	NBR	W5	80
650–666	6	SILICONE	W4	200
650–666	6	SILICONE	W5	200
650–666	10	EPDM	W4	100
650–666	10	EPDM	W5	100
650–666	10	NBR	W4	80
650–666	10	NBR	W5	80
650–666	10	SILICONE	W4	200
650–666	10	SILICONE	W5	200
650–666	16	EPDM	W4	100
650–666	16	EPDM	W5	100
650–666	16	NBR	W4	80
650–666	16	NBR	W5	80
650–666	16	SILICONE	W4	200
650–666	16	SILICONE	W5	200
676–692	10	EPDM	W4	100
676–692	10	EPDM	W5	100
676–692	10	NBR	W4	80
676–692	10	NBR	W5	80
676–692	10	SILICONE	W4	200
676–692	10	SILICONE	W5	200
702–718	18	EPDM	W4	100
702–718	18	EPDM	W5	100
702–718	18	NBR	W4	80
702–718	18	NBR	W5	80
702–718	18	SILICONE	W4	200
702–718	18	SILICONE	W5	200
706–722	6	EPDM	W4	100
706–722	6	EPDM	W5	100
706–722	6	NBR	W4	80
706–722	6	NBR	W5	80
706–722	6	SILICONE	W4	200
706–722	6	SILICONE	W5	200
706–722	11	EPDM	W4	100
706–722	11	EPDM	W5	100
706–722	11	NBR	W4	80
706–722	11	NBR	W5	80
706–722	11	SILICONE	W4	200
706–722	11	SILICONE	W5	200
706–722	18	EPDM	W4	100
706–722	18	EPDM	W5	100
706–722	18	NBR	W4	80
706–722	18	NBR	W5	80
706–722	18	SILICONE	W4	200
706–722	18	SILICONE	W5	200
714–730	6	EPDM	W4	100
714–730	6	EPDM	W5	100
714–730	6	NBR	W4	80
714–730	6	NBR	W5	80
714–730	6	SILICONE	W4	200
714–730	6	SILICONE	W5	200
714–730	11	EPDM	W4	100
714–730	11	EPDM	W5	100
714–730	11	NBR	W4	80
714–730	11	NBR	W5	80
714–730	11	SILICONE	W4	200
714–730	11	SILICONE	W5	200
714–730	18	EPDM	W4	100
714–730	18	EPDM	W5	100
714–730	18	NBR	W4	80
714–730	18	NBR	W5	80
714–730	18	SILICONE	W4	200
714–730	18	SILICONE	W5	200
734–750	6	EPDM	W4	100
734–750	6	EPDM	W5	100
734–750	6	NBR	W4	80
734–750	6	NBR	W5	80
734–750	6	SILICONE	W4	200
734–750	6	SILICONE	W5	200
734–750	11	EPDM	W4	100
734–750	11	EPDM	W5	100
734–750	11	NBR	W4	80
734–750	11	NBR	W5	80
734–750	11	SILICONE	W4	200
734–750	11	SILICONE	W5	200
734–750	18	EPDM	W4	100
734–750	18	EPDM	W5	100
734–750	18	NBR	W4	80
734–750	18	NBR	W5	80
734–750	18	SILICONE	W4	200
734–750	18	SILICONE	W5	200
748–764	6	EPDM	W4	100
748–764	6	EPDM	W5	100
748–764	6	NBR	W4	80
748–764	6	NBR	W5	80
748–764	6	SILICONE	W4	200
748–764	6	SILICONE	W5	200
748–764	11	EPDM	W4	100
748–764	11	EPDM	W5	100
748–764	11	NBR	W4	80
748–764	11	NBR	W5	80
748–764	11	SILICONE	W4	200
748–764	11	SILICONE	W5	200
748–764	18	EPDM	W4	100
748–764	18	EPDM	W5	100
748–764	18	NBR	W4	80
748–764	18	NBR	W5	80
748–764	18	SILICONE	W4	200
748–764	18	SILICONE	W5	200
757–773	7	EPDM	W4	100
757–773	7	EPDM	W5	100
757–773	7	NBR	W4	80
757–773	7	NBR	W5	80
757–773	7	SILICONE	W4	200
757–773	7	SILICONE	W5	200
767–783	10	EPDM	W4	100
767–783	10	EPDM	W5	100
767–783	10	NBR	W4	80
767–783	10	NBR	W5	80
767–783	10	SILICONE	W4	200
767–783	10	SILICONE	W5	200
788–804	7	EPDM	W4	100
788–804	7	EPDM	W5	100
788–804	7	NBR	W4	80
788–804	7	NBR	W5	80
788–804	7	SILICONE	W4	200
788–804	7	SILICONE	W5	200
788–804	10	EPDM	W4	100
788–804	10	EPDM	W5	100
788–804	10	NBR	W4	80
788–804	10	NBR	W5	80
788–804	10	SILICONE	W4	200
788–804	10	SILICONE	W5	200
795–811	10	EPDM	W4	100
795–811	10	EPDM	W5	100
795–811	10	NBR	W4	80
795–811	10	NBR	W5	80
795–811	10	SILICONE	W4	200
795–811	10	SILICONE	W5	200
808–824	6	EPDM	W4	100
808–824	6	EPDM	W5	100
808–824	6	NBR	W4	80
808–824	6	NBR	W5	80
808–824	6	SILICONE	W4	200
808–824	6	SILICONE	W5	200
808–824	10	EPDM	W4	100
808–824	10	EPDM	W5	100
808–824	10	NBR	W4	80
808–824	10	NBR	W5	80
808–824	10	SILICONE	W4	200
808–824	10	SILICONE	W5	200
808–824	16	EPDM	W4	100
808–824	16	EPDM	W5	100
808–824	16	NBR	W4	80
808–824	16	NBR	W5	80
808–824	16	SILICONE	W4	200
808–824	16	SILICONE	W5	200
820–836	6	EPDM	W4	100
820–836	6	EPDM	W5	100
820–836	6	NBR	W4	80
820–836	6	NBR	W5	80
820–836	6	SILICONE	W4	200
820–836	6	SILICONE	W5	200
820–836	10	EPDM	W4	100
820–836	10	EPDM	W5	100
820–836	10	NBR	W4	80
820–836	10	NBR	W5	80
820–836	10	SILICONE	W4	200
820–836	10	SILICONE	W5	200
820–836	16	EPDM	W4	100
820–836	16	EPDM	W5	100
820–836	16	NBR	W4	80
820–836	16	NBR	W5	80
820–836	16	SILICONE	W4	200
820–836	16	SILICONE	W5	200

OD (mm)
493–509
Pressure (bar)
8
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
493–509
Pressure (bar)
8
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
493–509
Pressure (bar)
8
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
493–509
Pressure (bar)
8
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
493–509
Pressure (bar)
8
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
493–509
Pressure (bar)
8
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
493–509
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
493–509
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
493–509
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
493–509
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
493–509
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
493–509
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
493–509
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
493–509
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
493–509
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
493–509
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
493–509
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
493–509
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
504–520
Pressure (bar)
8
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
504–520
Pressure (bar)
8
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
504–520
Pressure (bar)
8
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
504–520
Pressure (bar)
8
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
504–520
Pressure (bar)
8
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
504–520
Pressure (bar)
8
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
504–520
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
504–520
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
504–520
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
504–520
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
504–520
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
504–520
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
504–520
Pressure (bar)
20
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
504–520
Pressure (bar)
20
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
504–520
Pressure (bar)
20
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
504–520
Pressure (bar)
20
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
504–520
Pressure (bar)
20
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
504–520
Pressure (bar)
20
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
525–541
Pressure (bar)
8
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
525–541
Pressure (bar)
8
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
525–541
Pressure (bar)
8
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
525–541
Pressure (bar)
8
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
525–541
Pressure (bar)
8
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
525–541
Pressure (bar)
8
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
525–541
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
525–541
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
525–541
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
525–541
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
525–541
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
525–541
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
525–541
Pressure (bar)
20
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
525–541
Pressure (bar)
20
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
525–541
Pressure (bar)
20
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
525–541
Pressure (bar)
20
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
525–541
Pressure (bar)
20
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
525–541
Pressure (bar)
20
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
539–555
Pressure (bar)
8
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
539–555
Pressure (bar)
8
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
539–555
Pressure (bar)
8
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
539–555
Pressure (bar)
8
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
539–555
Pressure (bar)
8
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
539–555
Pressure (bar)
8
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
539–555
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
539–555
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
539–555
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
539–555
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
539–555
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
539–555
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
539–555
Pressure (bar)
20
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
539–555
Pressure (bar)
20
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
539–555
Pressure (bar)
20
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
539–555
Pressure (bar)
20
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
539–555
Pressure (bar)
20
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
539–555
Pressure (bar)
20
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
548–564
Pressure (bar)
8
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
548–564
Pressure (bar)
8
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
548–564
Pressure (bar)
8
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
548–564
Pressure (bar)
8
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
548–564
Pressure (bar)
8
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
548–564
Pressure (bar)
8
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
548–564
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
548–564
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
548–564
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
548–564
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
548–564
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
548–564
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
548–564
Pressure (bar)
20
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
548–564
Pressure (bar)
20
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
548–564
Pressure (bar)
20
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
548–564
Pressure (bar)
20
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
548–564
Pressure (bar)
20
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
548–564
Pressure (bar)
20
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
562–578
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
562–578
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
562–578
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
562–578
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
562–578
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
562–578
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
562–578
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
562–578
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
562–578
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
562–578
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
562–578
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
562–578
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
562–578
Pressure (bar)
19
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
562–578
Pressure (bar)
19
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
562–578
Pressure (bar)
19
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
562–578
Pressure (bar)
19
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
562–578
Pressure (bar)
19
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
562–578
Pressure (bar)
19
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
574–590
Pressure (bar)
19
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
574–590
Pressure (bar)
19
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
574–590
Pressure (bar)
19
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
574–590
Pressure (bar)
19
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
574–590
Pressure (bar)
19
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
574–590
Pressure (bar)
19
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
583–599
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
583–599
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
583–599
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
583–599
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
583–599
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
583–599
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
583–599
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
583–599
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
583–599
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
583–599
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
583–599
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
583–599
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
583–599
Pressure (bar)
19
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
583–599
Pressure (bar)
19
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
583–599
Pressure (bar)
19
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
583–599
Pressure (bar)
19
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
583–599
Pressure (bar)
19
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
583–599
Pressure (bar)
19
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
599–615
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
599–615
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
599–615
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
599–615
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
599–615
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
599–615
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
599–615
Pressure (bar)
12
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
599–615
Pressure (bar)
12
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
599–615
Pressure (bar)
12
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
599–615
Pressure (bar)
12
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
599–615
Pressure (bar)
12
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
599–615
Pressure (bar)
12
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
599–615
Pressure (bar)
19
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
599–615
Pressure (bar)
19
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
599–615
Pressure (bar)
19
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
599–615
Pressure (bar)
19
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
599–615
Pressure (bar)
19
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
599–615
Pressure (bar)
19
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
614–630
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
614–630
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
614–630
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
614–630
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
614–630
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
614–630
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
614–630
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
614–630
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
614–630
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
614–630
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
614–630
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
614–630
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
614–630
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
614–630
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
614–630
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
614–630
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
614–630
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
614–630
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
630–646
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
630–646
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
630–646
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
630–646
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
630–646
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
630–646
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
630–646
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
630–646
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
630–646
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
630–646
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
630–646
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
630–646
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
630–646
Pressure (bar)
17
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
630–646
Pressure (bar)
17
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
630–646
Pressure (bar)
17
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
630–646
Pressure (bar)
17
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
630–646
Pressure (bar)
17
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
630–646
Pressure (bar)
17
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
650–666
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
650–666
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
650–666
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
650–666
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
650–666
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
650–666
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
650–666
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
650–666
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
650–666
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
650–666
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
650–666
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
650–666
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
650–666
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
650–666
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
650–666
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
650–666
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
650–666
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
650–666
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
676–692
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
676–692
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
676–692
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
676–692
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
676–692
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
676–692
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
702–718
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
702–718
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
702–718
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
702–718
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
702–718
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
702–718
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
706–722
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
706–722
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
706–722
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
706–722
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
706–722
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
706–722
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
706–722
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
706–722
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
706–722
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
706–722
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
706–722
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
706–722
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
706–722
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
706–722
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
706–722
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
706–722
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
706–722
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
706–722
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
714–730
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
714–730
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
714–730
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
714–730
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
714–730
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
714–730
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
714–730
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
714–730
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
714–730
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
714–730
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
714–730
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
714–730
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
714–730
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
714–730
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
714–730
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
714–730
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
714–730
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
714–730
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
734–750
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
734–750
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
734–750
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
734–750
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
734–750
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
734–750
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
734–750
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
734–750
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
734–750
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
734–750
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
734–750
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
734–750
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
734–750
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
734–750
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
734–750
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
734–750
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
734–750
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
734–750
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
748–764
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
748–764
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
748–764
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
748–764
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
748–764
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
748–764
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
748–764
Pressure (bar)
11
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
748–764
Pressure (bar)
11
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
748–764
Pressure (bar)
11
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
748–764
Pressure (bar)
11
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
748–764
Pressure (bar)
11
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
748–764
Pressure (bar)
11
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
748–764
Pressure (bar)
18
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
748–764
Pressure (bar)
18
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
748–764
Pressure (bar)
18
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
748–764
Pressure (bar)
18
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
748–764
Pressure (bar)
18
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
748–764
Pressure (bar)
18
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
757–773
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
757–773
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
757–773
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
757–773
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
757–773
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
757–773
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
767–783
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
767–783
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
767–783
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
767–783
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
767–783
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
767–783
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
788–804
Pressure (bar)
7
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
788–804
Pressure (bar)
7
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
788–804
Pressure (bar)
7
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
788–804
Pressure (bar)
7
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
788–804
Pressure (bar)
7
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
788–804
Pressure (bar)
7
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
788–804
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
788–804
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
788–804
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
788–804
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
788–804
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
788–804
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
795–811
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
795–811
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
795–811
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
795–811
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
795–811
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
795–811
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
808–824
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
808–824
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
808–824
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
808–824
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
808–824
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
808–824
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
808–824
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
808–824
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
808–824
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
808–824
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
808–824
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
808–824
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
808–824
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
808–824
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
808–824
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
808–824
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
808–824
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
808–824
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
820–836
Pressure (bar)
6
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
820–836
Pressure (bar)
6
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
820–836
Pressure (bar)
6
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
820–836
Pressure (bar)
6
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
820–836
Pressure (bar)
6
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
820–836
Pressure (bar)
6
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
820–836
Pressure (bar)
10
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
820–836
Pressure (bar)
10
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
820–836
Pressure (bar)
10
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
820–836
Pressure (bar)
10
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
820–836
Pressure (bar)
10
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
820–836
Pressure (bar)
10
Gasket
SILICONE
Quality
W5
T max (°C)
200
OD (mm)
820–836
Pressure (bar)
16
Gasket
EPDM
Quality
W4
T max (°C)
100
OD (mm)
820–836
Pressure (bar)
16
Gasket
EPDM
Quality
W5
T max (°C)
100
OD (mm)
820–836
Pressure (bar)
16
Gasket
NBR
Quality
W4
T max (°C)
80
OD (mm)
820–836
Pressure (bar)
16
Gasket
NBR
Quality
W5
T max (°C)
80
OD (mm)
820–836
Pressure (bar)
16
Gasket
SILICONE
Quality
W4
T max (°C)
200
OD (mm)
820–836
Pressure (bar)
16
Gasket
SILICONE
Quality
W5
T max (°C)
200

IDZR 614-630 A2E11

Details

Downloads
