IDWR 614-630 A2E11

Name: IDWR 614-630 A2E11
Brand: Arpol

Details

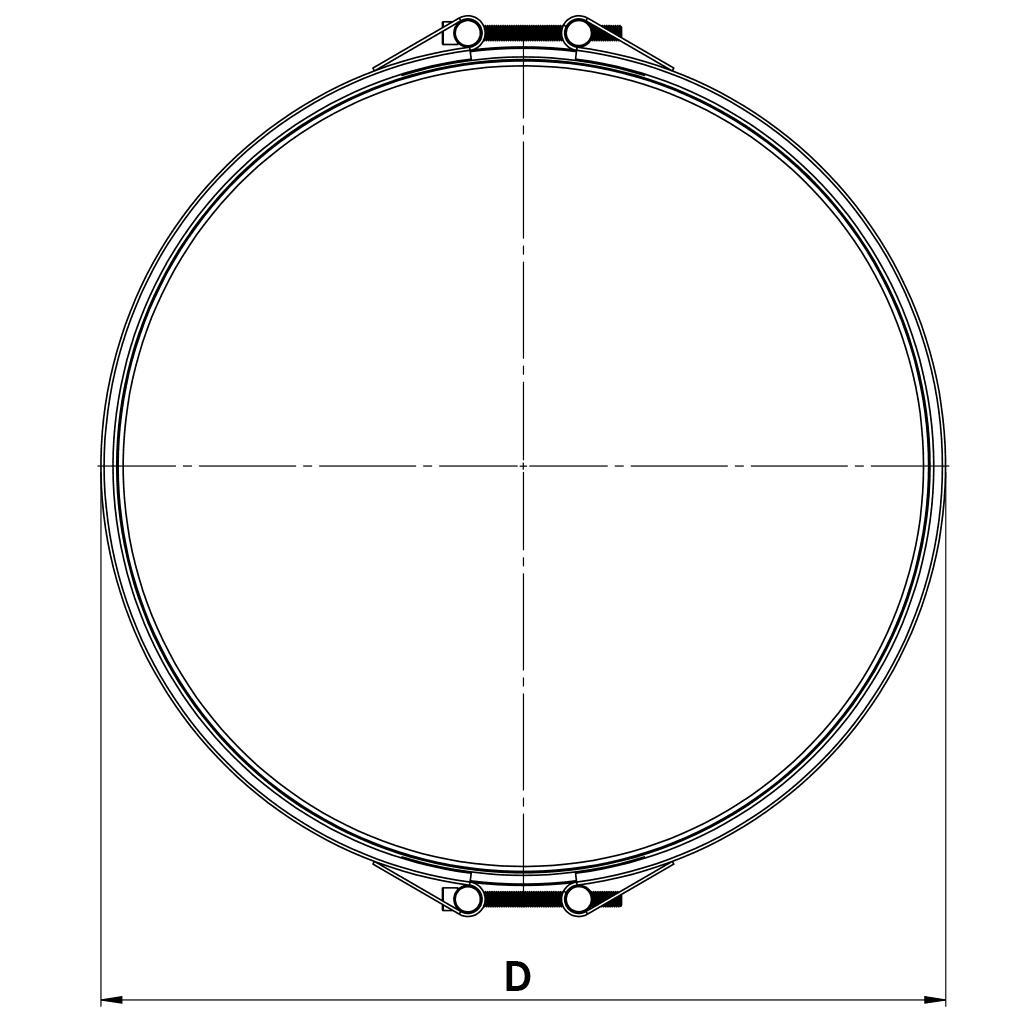

Outside Diameter495–822 mm

Pressure6–20 bar

Length300 mm

Casing qualityW5, W4

Sealing gasketSILICONE, NBR, EPDM

Ask for quote Configure

Catalogue Installation instructions Fitting instruction

ODmm	Pressurebar	Gasket	Quality	T max°C
493–509	8	EPDM	W4	100
493–509	8	EPDM	W5	100
493–509	8	NBR	W4	80
493–509	8	NBR	W5	80
493–509	8	SILICONE	W4	200
493–509	8	SILICONE	W5	200
493–509	11	EPDM	W4	100
493–509	11	EPDM	W5	100
493–509	11	NBR	W4	80
493–509	11	NBR	W5	80
493–509	11	SILICONE	W4	200
493–509	11	SILICONE	W5	200
493–509	17	EPDM	W4	100
493–509	17	EPDM	W5	100
493–509	17	NBR	W4	80
493–509	17	NBR	W5	80
493–509	17	SILICONE	W4	200
493–509	17	SILICONE	W5	200
504–520	8	EPDM	W4	100
504–520	8	EPDM	W5	100
504–520	8	NBR	W4	80
504–520	8	NBR	W5	80
504–520	8	SILICONE	W4	200
504–520	8	SILICONE	W5	200
504–520	10	EPDM	W4	100
504–520	10	EPDM	W5	100
504–520	10	NBR	W4	80
504–520	10	NBR	W5	80
504–520	10	SILICONE	W4	200
504–520	10	SILICONE	W5	200
504–520	20	EPDM	W4	100
504–520	20	EPDM	W5	100
504–520	20	NBR	W4	80
504–520	20	NBR	W5	80
504–520	20	SILICONE	W4	200
504–520	20	SILICONE	W5	200
525–541	8	EPDM	W4	100
525–541	8	EPDM	W5	100
525–541	8	NBR	W4	80
525–541	8	NBR	W5	80
525–541	8	SILICONE	W4	200
525–541	8	SILICONE	W5	200
525–541	10	EPDM	W4	100
525–541	10	EPDM	W5	100
525–541	10	NBR	W4	80
525–541	10	NBR	W5	80
525–541	10	SILICONE	W4	200
525–541	10	SILICONE	W5	200
525–541	20	EPDM	W4	100
525–541	20	EPDM	W5	100
525–541	20	NBR	W4	80
525–541	20	NBR	W5	80
525–541	20	SILICONE	W4	200
525–541	20	SILICONE	W5	200
539–555	8	EPDM	W4	100
539–555	8	EPDM	W5	100
539–555	8	NBR	W4	80
539–555	8	NBR	W5	80
539–555	8	SILICONE	W4	200
539–555	8	SILICONE	W5	200
539–555	10	EPDM	W4	100
539–555	10	EPDM	W5	100
539–555	10	NBR	W4	80
539–555	10	NBR	W5	80
539–555	10	SILICONE	W4	200
539–555	10	SILICONE	W5	200
539–555	20	EPDM	W4	100
539–555	20	EPDM	W5	100
539–555	20	NBR	W4	80
539–555	20	NBR	W5	80
539–555	20	SILICONE	W4	200
539–555	20	SILICONE	W5	200
548–564	10	EPDM	W4	100
548–564	10	EPDM	W5	100
548–564	10	NBR	W4	80
548–564	10	NBR	W5	80
548–564	10	SILICONE	W4	200
548–564	10	SILICONE	W5	200
562–578	12	EPDM	W4	100
562–578	12	EPDM	W5	100
562–578	12	NBR	W4	80
562–578	12	NBR	W5	80
562–578	12	SILICONE	W4	200
562–578	12	SILICONE	W5	200
583–599	7	EPDM	W4	100
583–599	7	EPDM	W5	100
583–599	7	NBR	W4	80
583–599	7	NBR	W5	80
583–599	7	SILICONE	W4	200
583–599	7	SILICONE	W5	200
583–599	12	EPDM	W4	100
583–599	12	EPDM	W5	100
583–599	12	NBR	W4	80
583–599	12	NBR	W5	80
583–599	12	SILICONE	W4	200
583–599	12	SILICONE	W5	200
599–615	7	EPDM	W4	100
599–615	7	EPDM	W5	100
599–615	7	NBR	W4	80
599–615	7	NBR	W5	80
599–615	7	SILICONE	W4	200
599–615	7	SILICONE	W5	200
599–615	12	EPDM	W4	100
599–615	12	EPDM	W5	100
599–615	12	NBR	W4	80
599–615	12	NBR	W5	80
599–615	12	SILICONE	W4	200
599–615	12	SILICONE	W5	200
599–615	19	EPDM	W4	100
599–615	19	EPDM	W5	100
599–615	19	NBR	W4	80
599–615	19	NBR	W5	80
599–615	19	SILICONE	W4	200
599–615	19	SILICONE	W5	200
614–630	6	EPDM	W4	100
614–630	6	EPDM	W5	100
614–630	6	NBR	W4	80
614–630	6	NBR	W5	80
614–630	6	SILICONE	W4	200
614–630	6	SILICONE	W5	200
614–630	11	EPDM	W4	100
614–630	11	EPDM	W5	100
614–630	11	NBR	W4	80
614–630	11	NBR	W5	80
614–630	11	SILICONE	W4	200
614–630	11	SILICONE	W5	200
614–630	17	EPDM	W4	100
614–630	17	EPDM	W5	100
614–630	17	NBR	W4	80
614–630	17	NBR	W5	80
614–630	17	SILICONE	W4	200
614–630	17	SILICONE	W5	200
630–646	6	EPDM	W4	100
630–646	6	EPDM	W5	100
630–646	6	NBR	W4	80
630–646	6	NBR	W5	80
630–646	6	SILICONE	W4	200
630–646	6	SILICONE	W5	200
630–646	11	EPDM	W4	100
630–646	11	EPDM	W5	100
630–646	11	NBR	W4	80
630–646	11	NBR	W5	80
630–646	11	SILICONE	W4	200
630–646	11	SILICONE	W5	200
630–646	17	EPDM	W4	100
630–646	17	EPDM	W5	100
630–646	17	NBR	W4	80
630–646	17	NBR	W5	80
630–646	17	SILICONE	W4	200
630–646	17	SILICONE	W5	200
650–666	6	EPDM	W4	100
650–666	6	EPDM	W5	100
650–666	6	NBR	W4	80
650–666	6	NBR	W5	80
650–666	6	SILICONE	W4	200
650–666	6	SILICONE	W5	200
650–666	10	EPDM	W4	100
650–666	10	EPDM	W5	100
650–666	10	NBR	W4	80
650–666	10	NBR	W5	80
650–666	10	SILICONE	W4	200
650–666	10	SILICONE	W5	200
650–666	16	EPDM	W4	100
650–666	16	EPDM	W5	100
650–666	16	NBR	W4	80
650–666	16	NBR	W5	80
650–666	16	SILICONE	W4	200
650–666	16	SILICONE	W5	200
676–692	10	EPDM	W4	100
676–692	10	EPDM	W5	100
676–692	10	NBR	W4	80
676–692	10	NBR	W5	80
676–692	10	SILICONE	W4	200
676–692	10	SILICONE	W5	200
706–722	6	EPDM	W4	100
706–722	6	EPDM	W5	100
706–722	6	NBR	W4	80
706–722	6	NBR	W5	80
706–722	6	SILICONE	W4	200
706–722	6	SILICONE	W5	200
706–722	11	EPDM	W4	100
706–722	11	EPDM	W5	100
706–722	11	NBR	W4	80
706–722	11	NBR	W5	80
706–722	11	SILICONE	W4	200
706–722	11	SILICONE	W5	200
706–722	18	EPDM	W4	100
706–722	18	EPDM	W5	100
706–722	18	NBR	W4	80
706–722	18	NBR	W5	80
706–722	18	SILICONE	W4	200
706–722	18	SILICONE	W5	200
714–730	6	EPDM	W4	100
714–730	6	EPDM	W5	100
714–730	6	NBR	W4	80
714–730	6	NBR	W5	80
714–730	6	SILICONE	W4	200
714–730	6	SILICONE	W5	200
714–730	11	EPDM	W4	100
714–730	11	EPDM	W5	100
714–730	11	NBR	W4	80
714–730	11	NBR	W5	80
714–730	11	SILICONE	W4	200
714–730	11	SILICONE	W5	200
714–730	18	EPDM	W4	100
714–730	18	EPDM	W5	100
714–730	18	NBR	W4	80
714–730	18	NBR	W5	80
714–730	18	SILICONE	W4	200
714–730	18	SILICONE	W5	200
734–750	6	EPDM	W4	100
734–750	6	EPDM	W5	100
734–750	6	NBR	W4	80
734–750	6	NBR	W5	80
734–750	6	SILICONE	W4	200
734–750	6	SILICONE	W5	200
734–750	11	EPDM	W4	100
734–750	11	EPDM	W5	100
734–750	11	NBR	W4	80
734–750	11	NBR	W5	80
734–750	11	SILICONE	W4	200
734–750	11	SILICONE	W5	200
734–750	18	EPDM	W4	100
734–750	18	EPDM	W5	100
734–750	18	NBR	W4	80
734–750	18	NBR	W5	80
734–750	18	SILICONE	W4	200
734–750	18	SILICONE	W5	200
748–764	11	EPDM	W4	100
748–764	11	EPDM	W5	100
748–764	11	NBR	W4	80
748–764	11	NBR	W5	80
748–764	11	SILICONE	W4	200
748–764	11	SILICONE	W5	200
748–764	18	EPDM	W4	100
748–764	18	EPDM	W5	100
748–764	18	NBR	W4	80
748–764	18	NBR	W5	80
748–764	18	SILICONE	W4	200
748–764	18	SILICONE	W5	200
757–773	7	EPDM	W4	100
757–773	7	EPDM	W5	100
757–773	7	NBR	W4	80
757–773	7	NBR	W5	80
757–773	7	SILICONE	W4	200
757–773	7	SILICONE	W5	200
767–783	10	EPDM	W4	100
767–783	10	EPDM	W5	100
767–783	10	NBR	W4	80
767–783	10	NBR	W5	80
767–783	10	SILICONE	W4	200
767–783	10	SILICONE	W5	200
788–804	10	EPDM	W4	100
788–804	10	EPDM	W5	100
788–804	10	NBR	W4	80
788–804	10	NBR	W5	80
788–804	10	SILICONE	W4	200
788–804	10	SILICONE	W5	200
795–811	10	EPDM	W4	100
795–811	10	EPDM	W5	100
795–811	10	NBR	W4	80
795–811	10	NBR	W5	80
795–811	10	SILICONE	W4	200
795–811	10	SILICONE	W5	200
808–824	6	EPDM	W4	100
808–824	6	EPDM	W5	100
808–824	6	NBR	W4	80
808–824	6	NBR	W5	80
808–824	6	SILICONE	W4	200
808–824	6	SILICONE	W5	200
808–824	10	EPDM	W4	100
808–824	10	EPDM	W5	100
808–824	10	NBR	W4	80
808–824	10	NBR	W5	80
808–824	10	SILICONE	W4	200
808–824	10	SILICONE	W5	200
808–824	16	EPDM	W4	100
808–824	16	EPDM	W5	100
808–824	16	NBR	W4	80
808–824	16	NBR	W5	80
808–824	16	SILICONE	W4	200
808–824	16	SILICONE	W5	200
820–836	10	EPDM	W4	100
820–836	10	EPDM	W5	100
820–836	10	NBR	W4	80
820–836	10	NBR	W5	80
820–836	10	SILICONE	W4	200
820–836	10	SILICONE	W5	200
820–836	16	EPDM	W4	100
820–836	16	EPDM	W5	100
820–836	16	NBR	W4	80
820–836	16	NBR	W5	80
820–836	16	SILICONE	W4	200
820–836	16	SILICONE	W5	200
